26-position circular connector, socket type, with crimp termination. Features a zinc alloy body plated in nickel, housing 26 gold-plated contacts. Rated for 7.5A current and 150V voltage, with IP67 and IP68 waterproof and dust-tight ratings. This shielded, free-hanging connector is designed for cable mounting and offers UL94 V-0 flammability.
PackageMetal
Voltage Rating150V
Current Rating7.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
Souriau UT0W61626SH technical specifications.
General
Body Material
ZINC ALLOY
Body Plating
Nickel
Package/Case
Metal
Contact Material
Gold
Contact Plating
Gold
Contact Type
CRIMP
Current Rating
7.5A
Features
Shielded
Flammability Rating
UL94 V-0
Material
Zinc
Mount
Free Hanging
Number of Contacts
16
Number of Positions
26
Package Quantity
25
Packaging
Bulk
Plating
Nickel
Ratings
IP67, Waterproof, Dust Tight, IP68
Reach SVHC Compliant
No
RoHS Compliant
No
Series
UT0W
Shell Material
ZINC ALLOY
Shell Size
16
Termination
Crimp
Voltage Rating
150V
Compliance
RoHS
Not Compliant
Datasheet
Souriau UT0W61626SH Datasheet
Download the complete datasheet for Souriau UT0W61626SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

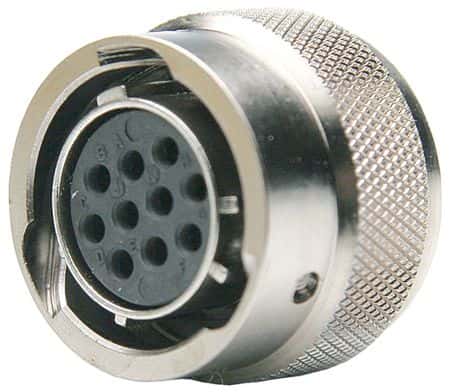

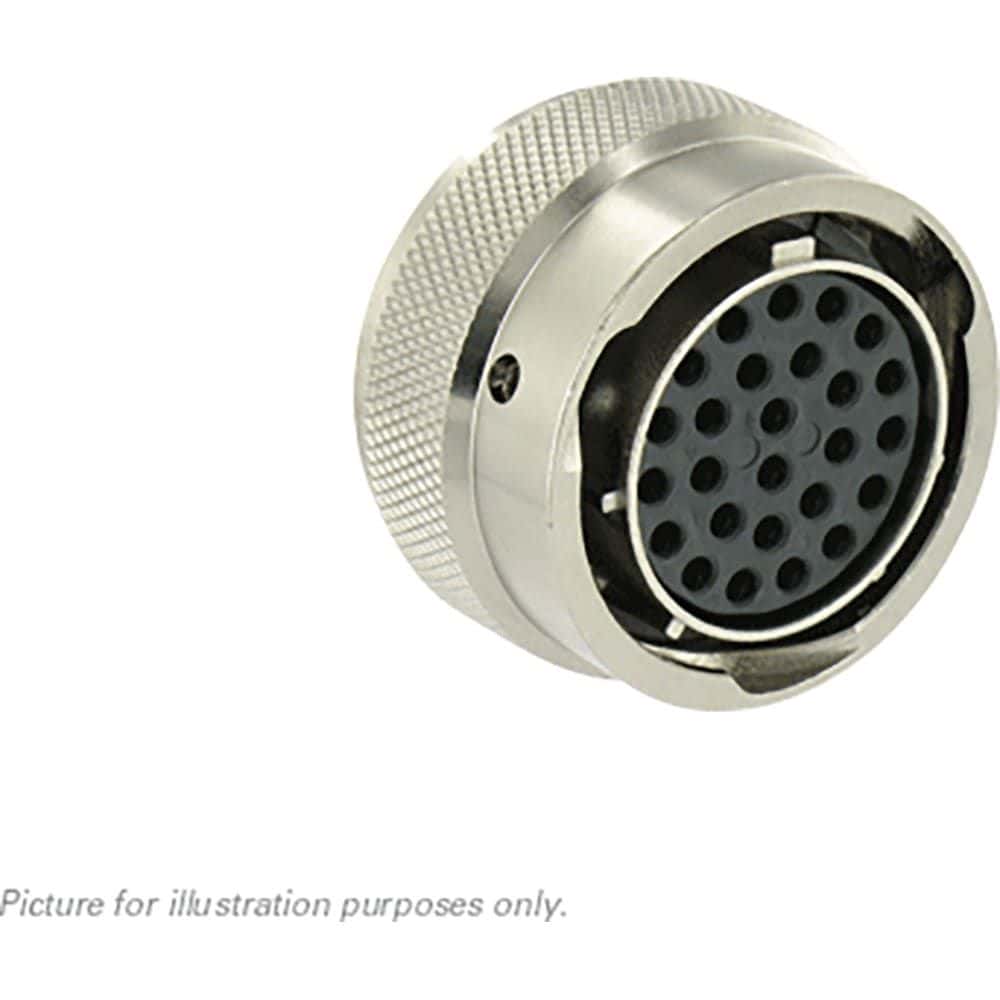

Product Images
