Technical Specifications
Souriau UTG01823SH technical specifications.
General
| Body Material | Glass, Thermoplastic, PET, Polyester |
| Package/Case | Metal |
| Contact Material | Gold |
| Contact Type | CRIMP |
| Current Rating | 13A |
| Depth | 33.3mm |
| Gender | Receptacle |
| Length | 24.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges |
| Number of Positions | 23 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | UTG |
| Shell Material | Thermoplastic |
| Shell Size | 18 |
| Strain Relief | No (Without) |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Souriau UTG01823SH Datasheet
Download the complete datasheet for Souriau UTG01823SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

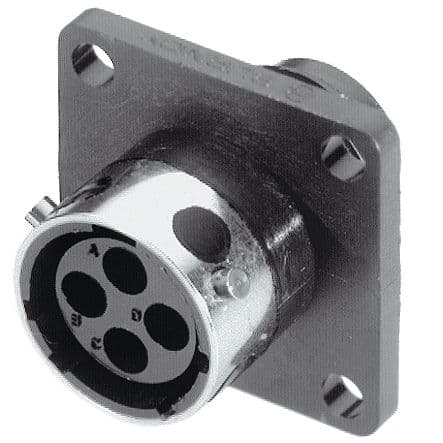

Product Images
