8-position, straight, male receptacle circular connector with CRIMP termination. Features a thermoplastic body and shell, rated for 10A current and 500V voltage. Operates within a temperature range of -40°C to 105°C and offers IP68, waterproof, and dust-tight sealing. Designed for free hanging, cable mounting with integrated strain relief.
Voltage Rating500V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Souriau UTS1JC128S technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Gender
Male
Contact Type
CRIMP
Current Rating
10A
Gender
Receptacle
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
8
Number of Positions
8
Orientation
Straight
Package Quantity
25
Packaging
Bulk
Primary Type
Sealed
Ratings
IP68, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UTS
Shell Material
Thermoplastic
Shell Size
12
Strain Relief
Yes (With)
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
Souriau UTS1JC128S Datasheet
Download the complete datasheet for Souriau UTS1JC128S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

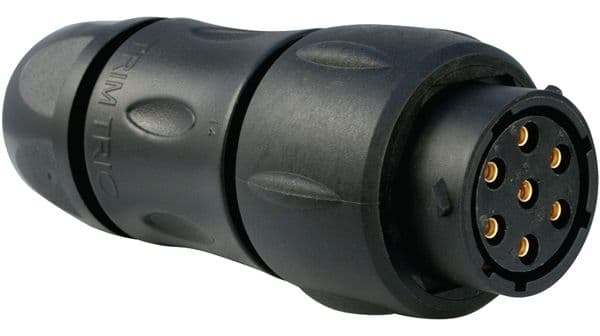

Product Images
