Circular connector with 7 male crimp contacts, rated for 10A and 500V. Features a straight, cable mount orientation with a thermoplastic shell and body, offering IP68, waterproof, and dust-tight sealing. Operating temperature range from -40°C to 105°C, with gold-plated contacts and integrated strain relief. UL approved and UL94 V-0 flammability rated.
Voltage Rating500V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Souriau UTS6JC147P technical specifications.
General
| Approvals | UL |
| Body Material | Thermoplastic |
| Contact Gender | Male |
| Contact Material | Gold |
| Contact Plating | Gold |
| Contact Type | CRIMP |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Material | Thermoplastic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Primary Type | Sealed |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | UTS |
| Shell Material | Thermoplastic |
| Shell Size | 14 |
| Strain Relief | Yes (With) |
| Termination | Crimp |
| Voltage Rating | 500V |
Compliance
| RoHS | Not Compliant |
Datasheet
Souriau UTS6JC147P Datasheet
Download the complete datasheet for Souriau UTS6JC147P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

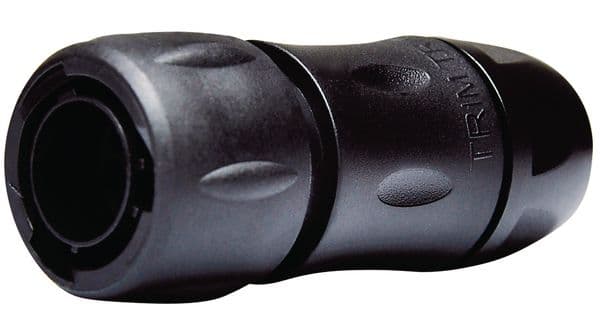

Product Images
