General purpose terminal block featuring 6 positions and 6 contacts for secure wire termination. Rated for 20A current and 100V voltage, this black barrier strip utilizes brass contacts with tin plating and screw termination. Designed for chassis mounting, it offers a 25.4mm pitch and accommodates wire gauges from 22AWG. Operating temperature range spans -55°C to 125°C.
Current20A
Voltage Rating100V
Current Rating20A
MountingChassis Mount
Quick Jump:
Technical Specifications
Spectrum 52-160-006-A technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current
20A
Current Rating
20A
ESD Protection
No
Height
1.173inch
Length
3.461inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Chassis Mount
Number of Channels
6
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Package Quantity
100
Packaging
Bulk
Pitch
25.4mm
Reach SVHC Compliant
No
RoHS Compliant
No
Termination
Screw
Voltage Rating
100V
Width
0.559inch
Wire/Cable Gauge
22AWG
Compliance
RoHS
Not Compliant
Datasheet
Spectrum 52-160-006-A Datasheet
Download the complete datasheet for Spectrum 52-160-006-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

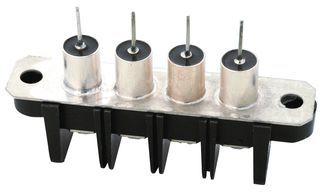

Product Images
