General purpose terminal block featuring 2 positions and a 11.1mm pitch. Rated for 20A current and 100V voltage, with a maximum operating temperature of 105°C. Brass contacts with tin plating ensure reliable connections via screw terminals. Straight orientation and through-hole mounting facilitate chassis installation. UL94 V-0 flammability rating and RoHS compliance.
Current20A
Voltage Rating100V
Current Rating20A
MountingChassis Mount
Quick Jump:
Technical Specifications
Spectrum 52F160-002-A technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current
20A
Current Rating
20A
Depth
39.4mm
ESD Protection
No
Flammability Rating
UL94 V-0
Height
1.173inch
Length
1.709inch
Max Current Rating
20A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
100V
Mount
Chassis Mount
Number of Channels
2
Number of Contacts
2
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
11.1mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Screw
Voltage Rating
100V
Width
0.65inch
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
Spectrum 52F160-002-A Datasheet
Download the complete datasheet for Spectrum 52F160-002-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

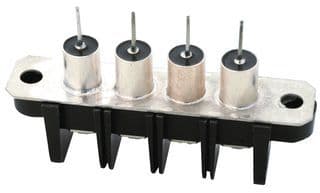

Product Images
