Unidirectional TVS diode for surge suppression, featuring a DO-201 package with through-hole mounting. Offers a 28.2V reverse standoff voltage and a 31.4V minimum breakdown voltage, with a maximum breakdown voltage of 34.7V. Provides a 59V clamping voltage and 45.7V maximum clamping voltage, capable of handling 1.5kW peak pulse power and 169A peak pulse current. Operates across a wide temperature range from -65°C to 175°C with a low leakage current of 1µA.
PackageDO-201
MountingThrough Hole
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Stmicroelectronics 1.5KE33A technical specifications.
General
Package/Case
DO-201
Clamping Voltage
59V
Clamping Voltage-Max
45.7V
Diameter
5.3mm
Diode Type
ZENER
Direction
Unidirectional
Height
5.3mm
Lead Free
Lead Free
Leakage Current
1uA
Length
9.5mm
Max Breakdown Voltage
34.7V
Min Breakdown Voltage
31.4V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
1uA
Mount
Through Hole
Number of Elements
1
Number of Unidirectional Channels
1
Packaging
Tape and Reel
Peak Pulse Current
169A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
31.4V
Reverse Standoff Voltage
28.2V
RoHS Compliant
Yes
Series
1.5KE, TRANSIL™
DC Rated Voltage
33V
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics 1.5KE33A Datasheet
Download the complete datasheet for Stmicroelectronics 1.5KE33A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

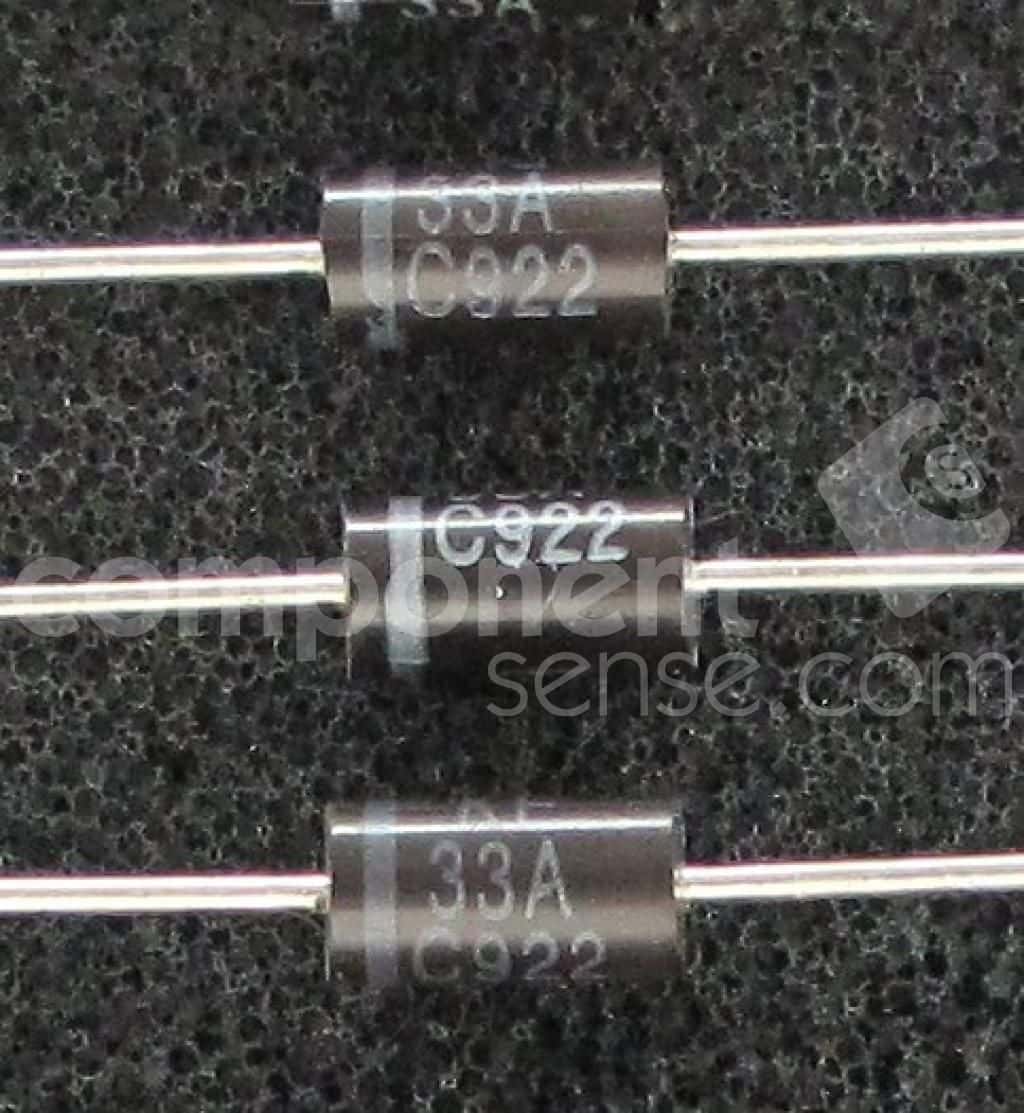

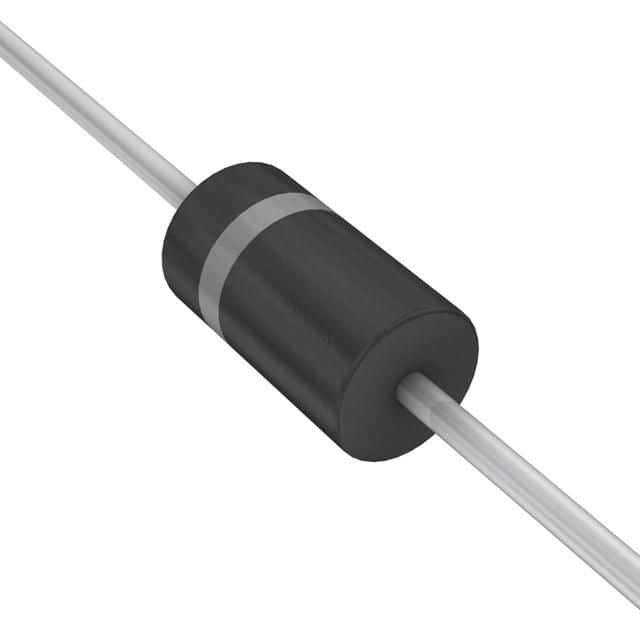

Product Images
