Current Rating15A
MountingVertical
Quick Jump:
Technical Specifications
Struthers-Dunn A275KXX-24VDC technical specifications.
General
Approvals
CSA
Coil Power
4.6W
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
0.157inch
Length
2.984inch
Max Operating Temperature
74°C
Min Operating Temperature
-34°C
Mount
Vertical
Number of Poles
3
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Termination
Quick Connect
Voltage Rating (AC)
600V
Width
3.37inch
Compliance
RoHS
Compliant
Datasheet
Struthers-Dunn A275KXX-24VDC Datasheet
Download the complete datasheet for Struthers-Dunn A275KXX-24VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

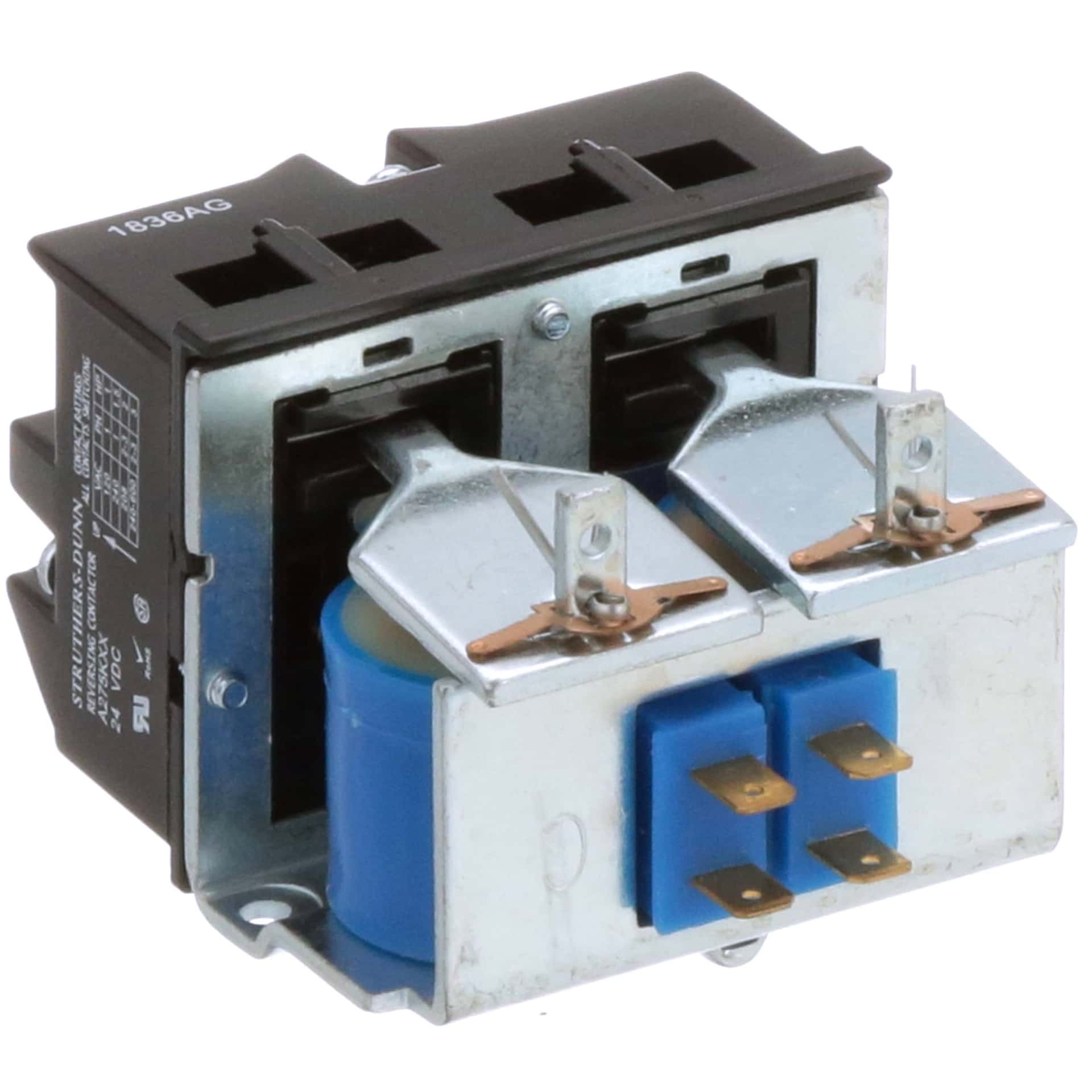

Product Images
