Voltage Rating150V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Sullins NRPN032PAEN-RC technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Brass
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Male
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Material
Nylon
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Positions
6
Number of Rows
2
Packaging
Bulk
Pitch
2mm
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Sullins NRPN032PAEN-RC Datasheet
Download the complete datasheet for Sullins NRPN032PAEN-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

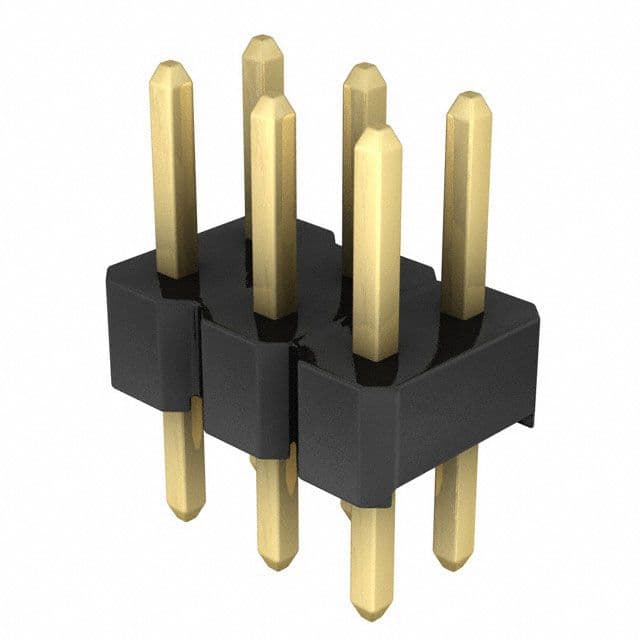

Product Images
