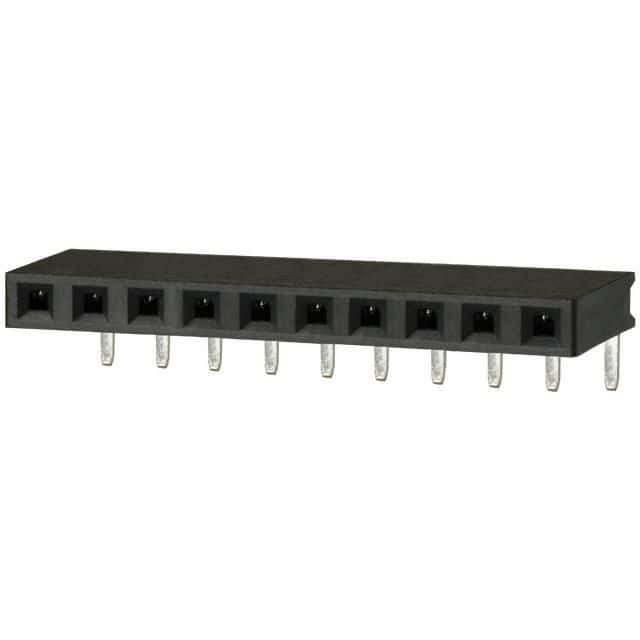

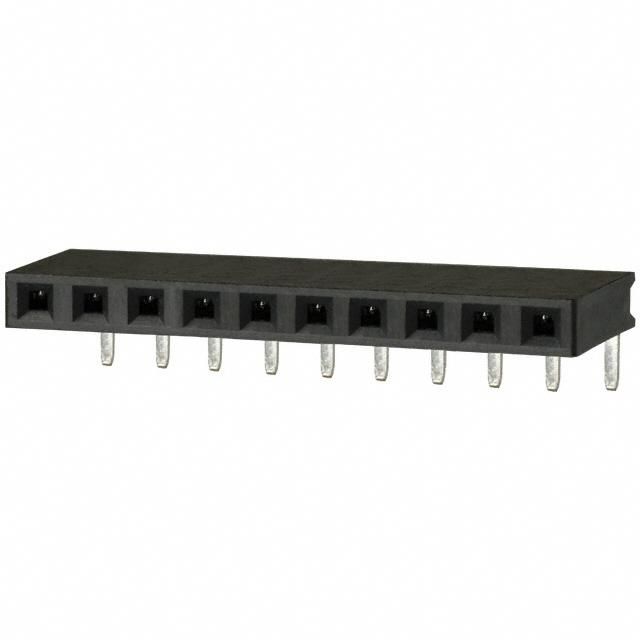

10-position, single-row female socket connector with square bronze contacts and tin mating finish. Features a polyester insulation material with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. Through-hole mount design with solder termination, a 250V voltage rating, and dimensions of 25.9mm length, 8.5mm width, and 2.4mm height. Lead-free and RoHS compliant.
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Sullins PPTC101LGBN-RC technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Height
2.4mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polyester
Lead Free
Lead Free
Length
25.9mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Positions
10
Number of Rows
1
Packaging
Tray
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
250V
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Sullins PPTC101LGBN-RC Datasheet
Download the complete datasheet for Sullins PPTC101LGBN-RC to view detailed technical specifications.
No datasheet is available for this part.

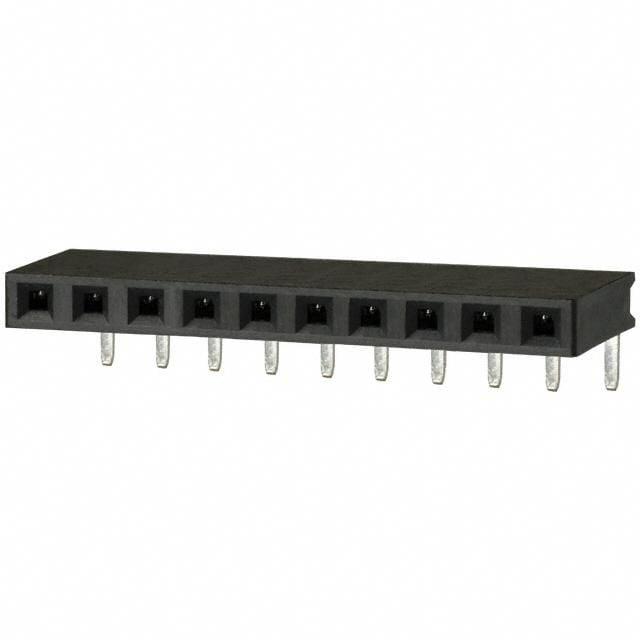

Product Images
