40-position, 2-row female socket strip connector with 2.54mm pitch. Features tin-plated bronze square contacts for mating, a polyester insulator in black, and a solder termination method. This through-hole mount component offers a voltage rating of 250V, a maximum operating temperature of 105°C, and a flammability rating of UL94 V-0. Dimensions include 8.5mm height, 51.3mm length, and 5mm width. Lead-free and RoHS compliant.
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Sullins PPTC202LFBN-RC technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Shape
Square
Contact Type
Female Socket
Flammability Rating
UL94 V-0
Height
8.5mm
Insulation Color
Black
Insulation Material
Polyester
Lead Free
Lead Free
Length
51.3mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Positions
40
Number of Rows
2
Packaging
Tray
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
250V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Sullins PPTC202LFBN-RC Datasheet
Download the complete datasheet for Sullins PPTC202LFBN-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

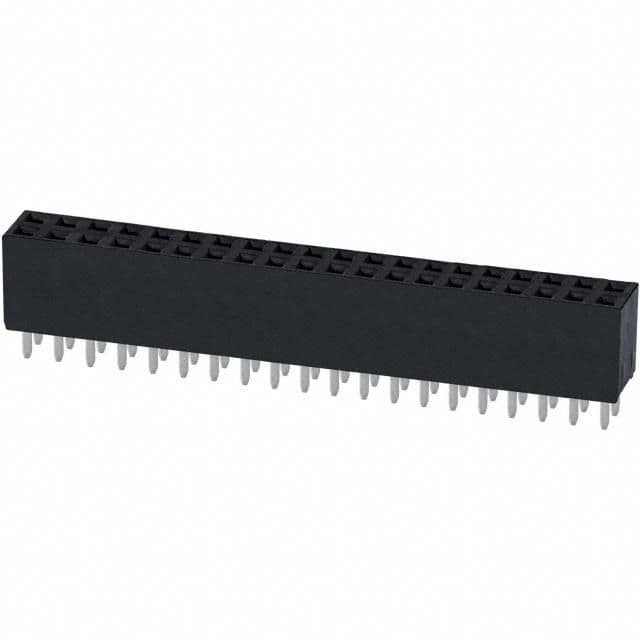

Product Images
