Technical Specifications
Sullins SFH11-PBPC-D07-RA-BK technical specifications.
General
| Color | Black |
| Contact Material | Nickel, Gold |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Height | 7.2mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SFH11 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Sullins SFH11-PBPC-D07-RA-BK Datasheet
Download the complete datasheet for Sullins SFH11-PBPC-D07-RA-BK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

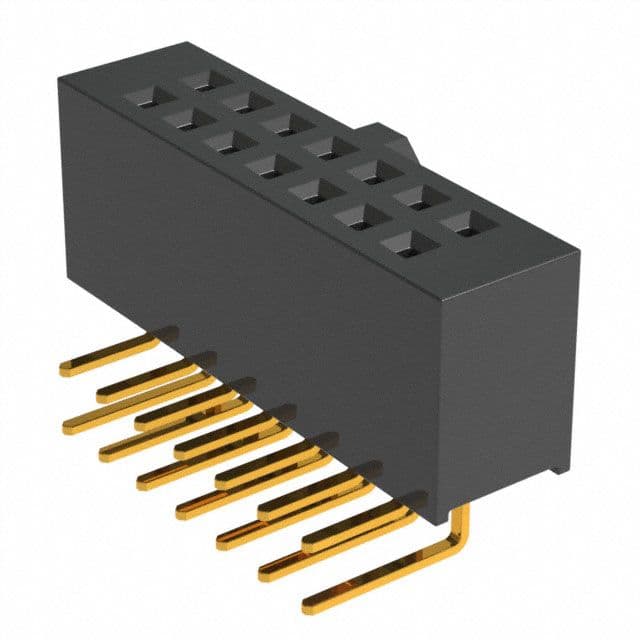

Product Images
