Frequency50|60 Hz
PackageAxial
Voltage Rating115V
Current Rating210mA
Quick Jump:
Technical Specifications
Sunon A1123-HST.GN technical specifications.
General
Airflow
115CFM
Bearing Type
Sleeve
Package/Case
Axial
Current Rating
210mA
Height
119.5mm
Length
119.5mm
Material
Aluminium
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
20W
Mount
Flanges
Noise
49dBA
Noise (dB)
50dB
Noise Level
44/49dBA
Operating Frequency
50|60 Hz
Package Quantity
1
RPM
3100RPM
Series
A
Termination
2 Wire Leads
Voltage Rating
115V
Voltage Rating (AC)
115V
Weight
1.2lb
Width
38.5mm
Compliance
RoHS
Compliant
Datasheet
Sunon A1123-HST.GN Datasheet
Download the complete datasheet for Sunon A1123-HST.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

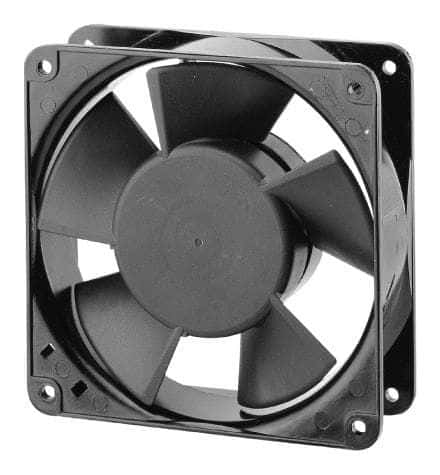

Product Images
