PackageAxial
Current Rating480mA
Quick Jump:
Technical Specifications
Sunon A1175-HBT.T.GN technical specifications.
General
Airflow
200CFM
Approvals
UL, CE, TUV
Bearing Type
Ball
Package/Case
Axial
Current Rating
480mA
Length
171.5mm
Material
Aluminium
Max Power Dissipation
36W
Noise
55dBA
Noise Level
52/55
dBA
RPM
2950RPM
Series
A
Termination
2 Wire Leads
Weight
2.1lb
Width
51mm
Compliance
RoHS
Compliant
Datasheet
Sunon A1175-HBT.T.GN Datasheet
Download the complete datasheet for Sunon A1175-HBT.T.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

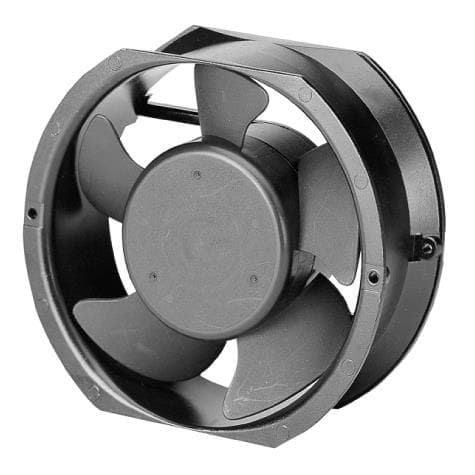

Product Images
