AC axial fan, 120mm x 120mm x 38mm, delivering 115 CFM airflow at 3100 RPM. Features a sleeve bearing and 21W power consumption, operating at 220-240V AC with a 50/60 Hz frequency. Rated for 240V AC, this RoHS compliant component has a flammability rating of UL94 V-0 and operates within a temperature range of 14°C to 158°C.
Frequency50|60 Hz
PackageAxial
Voltage Rating240V
Current Rating120mA
Quick Jump:
Technical Specifications
Sunon DP200A-2123XST.GN technical specifications.
General
Airflow
115CFM
Bearing Type
Sleeve
Package/Case
Axial
Current Rating
120mA
Depth
38mm
Flammability Rating
UL94 V-0
Height
38mm
Lead Free
Lead Free
Length
120mm
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
21W
Noise
49dBA
Noise Level
44|49 dB
Operating Frequency
50|60 Hz
Operating Supply Voltage
240V
Power Consumption
21W
RoHS Compliant
Yes
RPM
3100RPM
Series
DP
Speed
3100RPM
Termination
Terminals
Voltage Rating
240V
Voltage Rating (AC)
230V
Weight
1.2lb
Width
38mm
Compliance
RoHS
Compliant
Datasheet
Sunon DP200A-2123XST.GN Datasheet
Download the complete datasheet for Sunon DP200A-2123XST.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

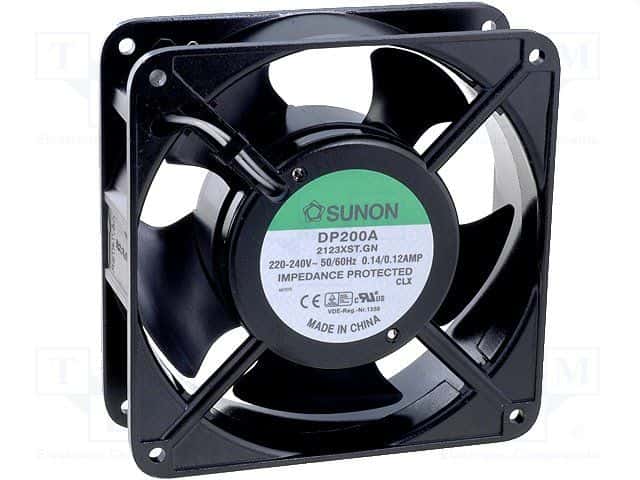

Product Images
