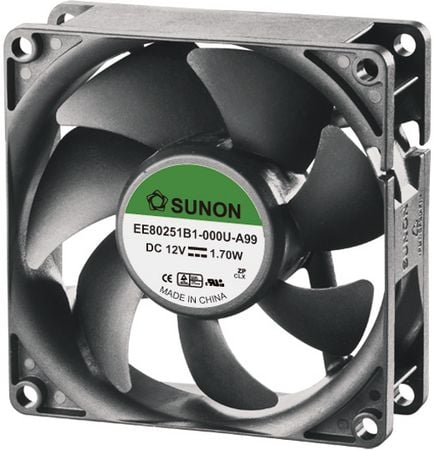

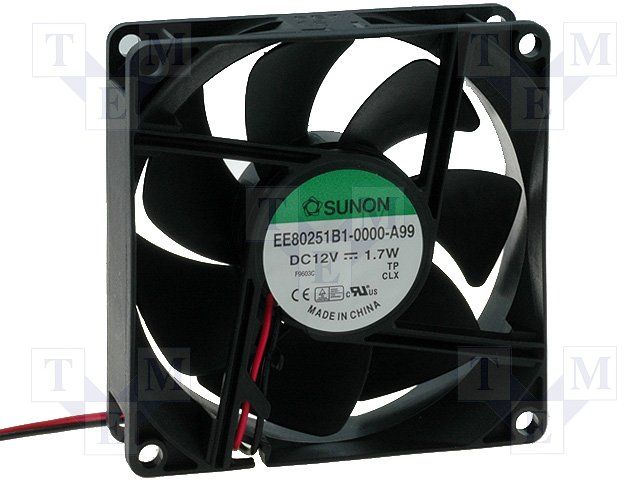

DC axial fan, 80mm width and height, 25mm depth, operating at 12VDC with a 145mA current rating. Features 3200 RPM speed, 41 CFM airflow, and 33dBA noise level. Ball bearing type ensures 50,000 hours of life. Constructed with UL94 V-0 flammability rating and lead-free materials, this RoHS compliant component operates between 14°C and 158°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Sunon EE80251B1-000U-A99 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 41CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 145mA |
| Depth | 25mm |
| Flammability Rating | UL94 V-0 |
| Height | 80mm |
| Lead Free | Lead Free |
| Life (Hours) | 50000Hour |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 1.7W |
| Noise | 33dBA |
| Noise Level | 33dB |
| Operating Supply Voltage | 12V |
| Package Quantity | 30 |
| Power Consumption | 1.74W |
| RoHS Compliant | Yes |
| RPM | 3200RPM |
| Series | DR MagLev® |
| Termination | 2 Wire Leads |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 0.165lb |
| Width | 80mm |
| RoHS | Compliant |
Download the complete datasheet for Sunon EE80251B1-000U-A99 to view detailed technical specifications.
