Axial fan, 25mm x 10mm, operating at 5VDC with 10000RPM speed. Features VAPO bearing type for reliable performance, delivering 3CFM airflow with a low noise level of 16dBA. Constructed from plastic, this fan is lead-free and rated for a wide operating temperature range from 14°C to 158°C. Approvals include UL, CE, and TUV, with 2 wire leads for termination.
Frequency10000RPM
PackageAxial
Current Rating80mA
Power400mW
Quick Jump:
Technical Specifications
Sunon GM0502PFV2-8.GN technical specifications.
General
Airflow
3CFM
Approvals
UL, CE, TUV
Bearing Type
VAPO
Package/Case
Axial
Current Rating
80mA
Height
25mm
Lead Free
Lead Free
Lead Length
150mm
Material
Plastic
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
400mW
Noise
16dBA
Noise Level
16dBA
Package Quantity
200
Packaging
Box
Power Consumption
400mW
Reach SVHC Compliant
No
RPM
10000RPM
Series
MagLev®
Speed
10000RPM
Termination
2 Wire Leads
DC Rated Voltage
5V
Weight
0.017lb
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Sunon GM0502PFV2-8.GN Datasheet
Download the complete datasheet for Sunon GM0502PFV2-8.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

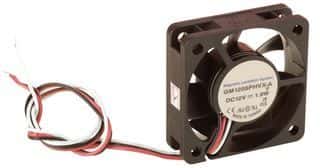

Product Images
