Axial fan, 60mm x 15mm, 12VDC, delivering 21 CFM airflow at 4300 RPM. Features ball bearing for durability and UL94 V-0 flammability rating. Operates within a temperature range of 14°C to 158°C, with a noise level of 37 dBA. Approved by UL, CE, and TUV, this lead-free component is supplied with 2 wire leads.
PackageAxial
Voltage Rating12V
Current Rating150mA
Quick Jump:
Technical Specifications
Sunon KD1206PHB1.(2).GN technical specifications.
General
| Airflow | 21CFM |
| Approvals | UL, CE, TUV |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 150mA |
| Depth | 60mm |
| Flammability Rating | UL94 V-0 |
| Height | 15mm |
| Lead Free | Lead Free |
| Length | 60mm |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 1.9W |
| Noise | 37dBA |
| Noise Level | 37 dB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RPM | 4300RPM |
| Series | MagLev® |
| Termination | 2 Wire Leads |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 0.092lb |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Sunon KD1206PHB1.(2).GN Datasheet
Download the complete datasheet for Sunon KD1206PHB1.(2).GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

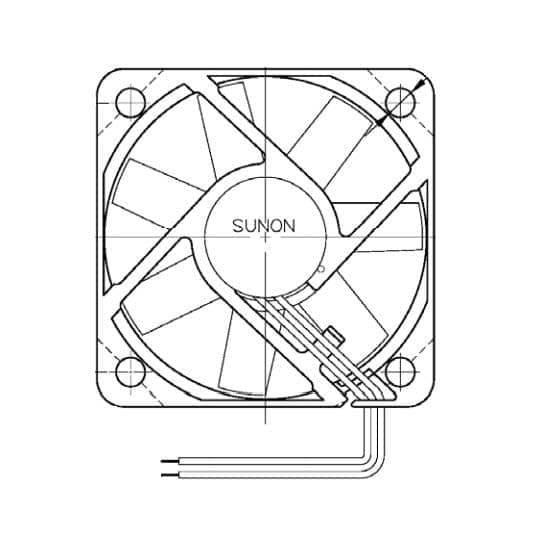

Product Images
