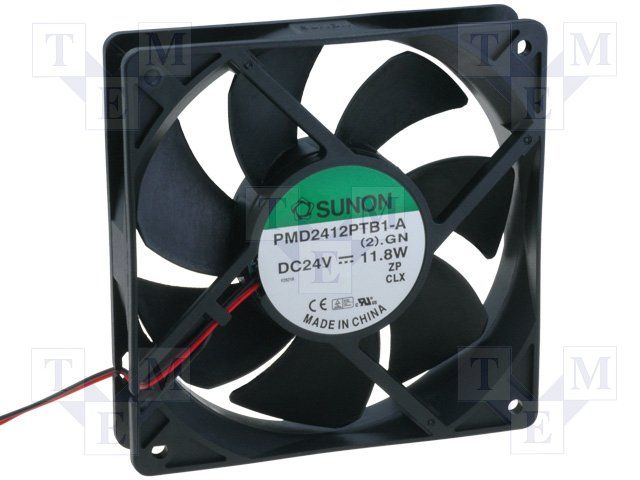

Axial fan, 120mm x 25mm, delivering 150 CFM airflow at 4500 RPM. Features durable ball bearings, 24VDC voltage rating, and 2-wire lead termination. Constructed from UL94 V-0 rated plastic, this fan operates within a temperature range of 14°C to 158°C and has a maximum power dissipation of 11.8W. RoHS compliant and lead-free, it offers a noise level of 54 dBA.
PackageAxial
Voltage Rating24V
Quick Jump:
Technical Specifications
Sunon PMD2412PTB1-A.(2).GN technical specifications.
General
Airflow
150CFM
Bearing Type
Ball
Package/Case
Axial
Depth
120mm
Flammability Rating
UL94 V-0
Height
25mm
Lead Free
Lead Free
Length
120mm
Material
Plastic
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
11.8W
Noise
54dBA
Noise Level
54 dB
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
RPM
4500RPM
Series
PMD
Termination
2 Wire Leads
Voltage Rating
24V
Weight
0.485lb
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Sunon PMD2412PTB1-A.(2).GN Datasheet
Download the complete datasheet for Sunon PMD2412PTB1-A.(2).GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
