Axial AC fan, 80mm depth and width, 38mm height, delivering 30 CFM airflow at 2750 RPM. Features sleeve bearing, aluminium construction, and operates on 240V AC at 50/60 Hz, consuming 16W. Rated for 14°C to 158°C operating temperature, with a noise level of 35 dBA. Approvals include UL, CSA, CE, and TUV, with UL94 V-0 flammability rating and RoHS compliance.
Frequency50|60 Hz
PackageAxial
Voltage Rating240V
Power16W
Quick Jump:
Technical Specifications
Sunon SF23080A-2083HSL.GN technical specifications.
General
Airflow
30CFM
Approvals
UL, CSA, CE, TUV
Bearing Type
Sleeve
Package/Case
Axial
Depth
80mm
Flammability Rating
UL94 V-0
Height
38mm
Lead Free
Lead Free
Length
80mm
Material
Aluminium
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
16W
Noise
35dBA
Noise Level
31|35 dB
Operating Frequency
50|60 Hz
Operating Supply Voltage
240V
Packaging
Bulk
Power Consumption
16W
Radiation Hardening
No
RoHS Compliant
Yes
RPM
2750RPM
Series
SF
Termination
2 Wire Leads
Voltage Rating
240V
Voltage Rating (AC)
240V
Weight
0.75lb
Width
38mm
Compliance
RoHS
Compliant
Datasheet
Sunon SF23080A-2083HSL.GN Datasheet
Download the complete datasheet for Sunon SF23080A-2083HSL.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

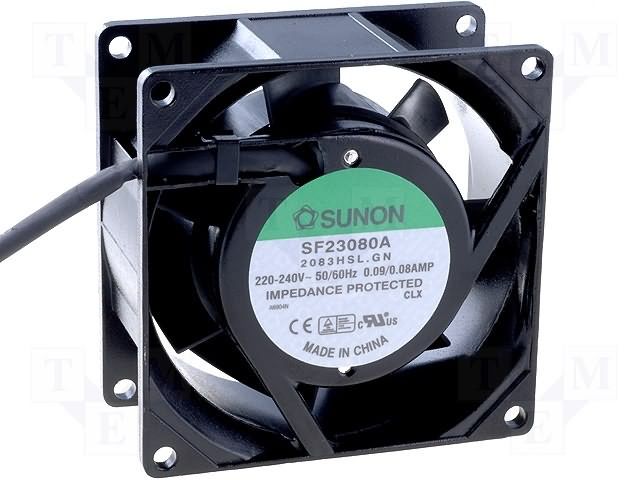

Product Images
