Axial AC fan designed for thermal management applications. Features a 115V operating supply voltage, 20W power consumption, and 3100 RPM speed, delivering 115 CFM airflow. Constructed with an aluminum frame and sleeve bearing for durability. Operates within a temperature range of 14°C to 158°C, with a noise level of 49 dBA. RoHS compliant and UL94 V-0 flammability rated.
PackageAxial
Voltage Rating115V
Power20W
Quick Jump:
Technical Specifications
Sunon SP100A-1123XST.GN technical specifications.
General
Airflow
115CFM
Bearing Type
Sleeve
Package/Case
Axial
Depth
38mm
Flammability Rating
UL94 V-0
Height
120mm
Lead Free
Lead Free
Material
Aluminium
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
20W
Noise
49dBA
Noise Level
44/49
dBA
Operating Supply Voltage
115V
Power Consumption
20W
RoHS Compliant
Yes
RPM
3100RPM
Series
SP
Termination
Terminals
Voltage Rating
115V
Weight
1.2lb
Width
38mm
Compliance
RoHS
Compliant
Datasheet
Sunon SP100A-1123XST.GN Datasheet
Download the complete datasheet for Sunon SP100A-1123XST.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

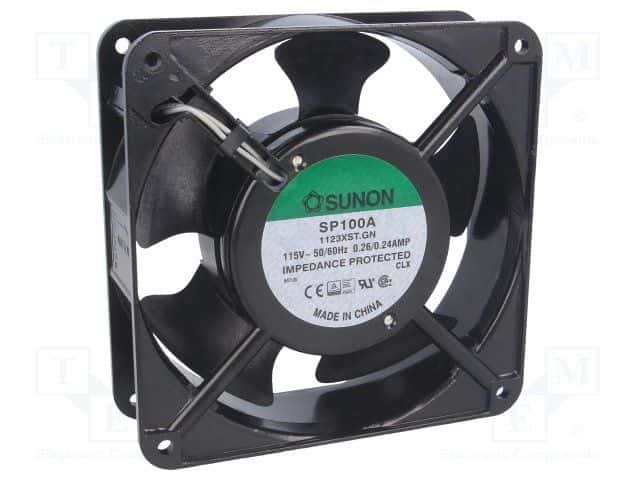

Product Images
