Current Rating3A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Switchcraft 113EX technical specifications.
General
Body Color
Black
Body Material
Brass
Color
Black
Contact Material
Copper Alloy, Brass
Contact Plating
Tin, Nickel, Gold
Current Rating
3A
Depth
15.9mm
Gender
Female
Length
15.9mm
Max Current Rating
25A
Max Operating Temperature
65°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
48V
Mount
Through Hole, Panel
Number of Ports
1
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
Hi-D® 11*
Shielding
Unshielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Switchcraft 113EX Datasheet
Download the complete datasheet for Switchcraft 113EX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

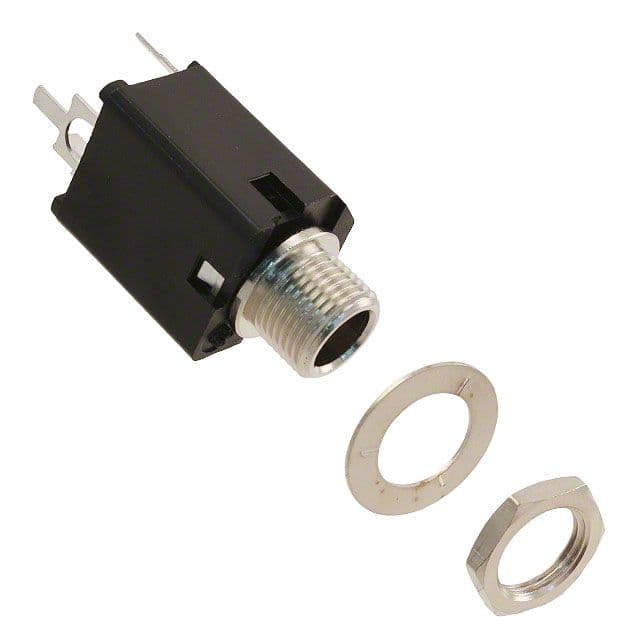

Product Images
