2-pole, male audio/RCA plug connector with straight, shielded, free-hanging mounting. Features brass and metal body construction with silver finish, and copper alloy/brass contacts plated with gold and nickel. Offers a current rating of 6A, AC voltage rating of 140V, and DC voltage rating of 250V. Operates within a temperature range of -40°C to 85°C, with solder termination and locking mechanism.
PackageMetal
Current Rating6A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Switchcraft 3502AAU technical specifications.
General
Body Color
Silver
Body Material
Brass, Metal
Package/Case
Metal
Color
Black
Contact Material
Copper Alloy, Brass
Contact Plating
Gold, Nickel
Current Rating
6A
Gender
Male
Lead Free
Lead Free
Length
41.7mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
140.25kV
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Ports
1
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
3502A
Shielding
Shielded
Termination
Solder
Voltage Rating (AC)
140V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Switchcraft 3502AAU Datasheet
Download the complete datasheet for Switchcraft 3502AAU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

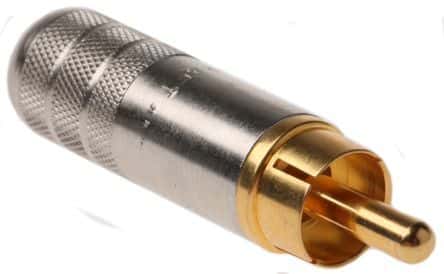

Product Images
