Voltage Rating600V
Current Rating23A
MountingPanel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications

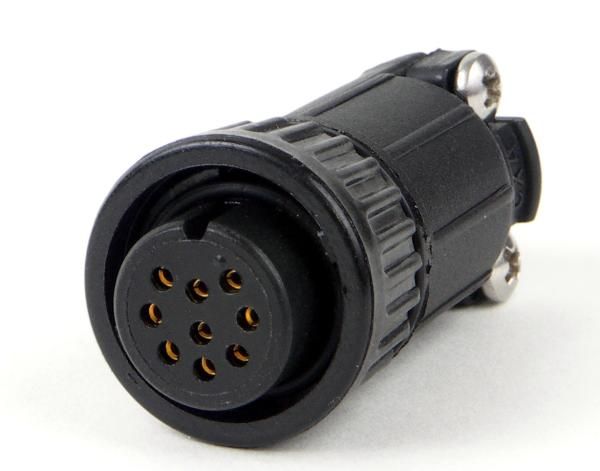

Switchcraft 4292-8SG-3ES technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Plating | Gold |
| Current Rating | 23A |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Bulkhead, Front Side Nut |
| Number of Positions | 8 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP67 |
| Series | Multi-Con-X® |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft 4292-8SG-3ES Datasheet
Download the complete datasheet for Switchcraft 4292-8SG-3ES to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
