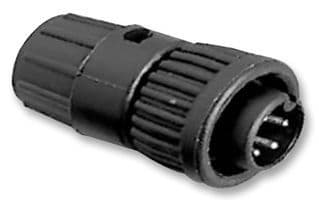

3-position, male, straight, solder cup, circular connector for cable mounting. Features brass, gold-plated pins with a gold contact finish. Rated IP67 for sealing, with a 600V voltage rating and 10A current rating. Operates between -40°C and 115°C. Approved by UL and CSA.
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
Switchcraft 6282-3PG-3DC technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Pin |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 33.4mm |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | Gold |
| Primary Type | Sealed |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Series | Mini-Con-X |
| Shell Material | Nylon |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft 6282-3PG-3DC Datasheet
Download the complete datasheet for Switchcraft 6282-3PG-3DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
