Straight, panel-mount DC power connector with a 2-position, 3-terminal configuration. Features a copper alloy body and contacts with silver plating, rated for 5A and 12V DC/AC. Designed for bulkhead mounting with a front-side nut and through-hole termination, accepting a 2.5mm pin diameter. Unshielded and lead-free, this connector is supplied in bulk packaging.
Voltage Rating12V
Current Rating5A
MountingPanel, Bulkhead, Front Side Nut, Through Hole
Quick Jump:
Technical Specifications
Switchcraft 712A technical specifications.
General
Body Color
Black
Body Material
Copper Alloy
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Silver
Current Rating
5A
Diameter
11mm
Gender
Male
Lead Free
Lead Free
Length
23.3mm
Max Current Rating
5A
Max Voltage Rating (DC)
12V
Mount
Panel, Bulkhead, Front Side Nut, Through Hole
Number of Contacts
3
Number of Ports
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pin Diameter
2.5mm
Primary Type
POWER
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
Solder
Voltage Rating
12V
Voltage Rating (AC)
12V
Weight
0.112877oz
Width
0.816inch
Compliance
RoHS
Compliant
Datasheet
Switchcraft 712A Datasheet
Download the complete datasheet for Switchcraft 712A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

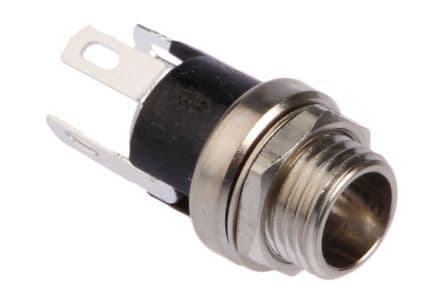

Product Images
