Seven-position, male XLR connector for cable mounting. Features gold-plated copper alloy contacts for superior conductivity and durability, with a 7.5A current rating and 125V voltage rating. Constructed with a zinc alloy shell and plastic insulation, this shielded connector offers a vertical orientation and solder termination.
Voltage Rating125V
Current Rating7.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
Switchcraft AAA7MBAUZ technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 7.5A |
| Gender | Male |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Max Current Rating | 5A |
| Mount | Free Hanging |
| Number of Contacts | 7 |
| Number of Ports | 1 |
| Number of Positions | 7 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | Q-G® AAA |
| Shell Finish | Chrome |
| Shell Material | ZINC ALLOY |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Switchcraft AAA7MBAUZ Datasheet
Download the complete datasheet for Switchcraft AAA7MBAUZ to view detailed technical specifications.
No datasheet is available for this part.

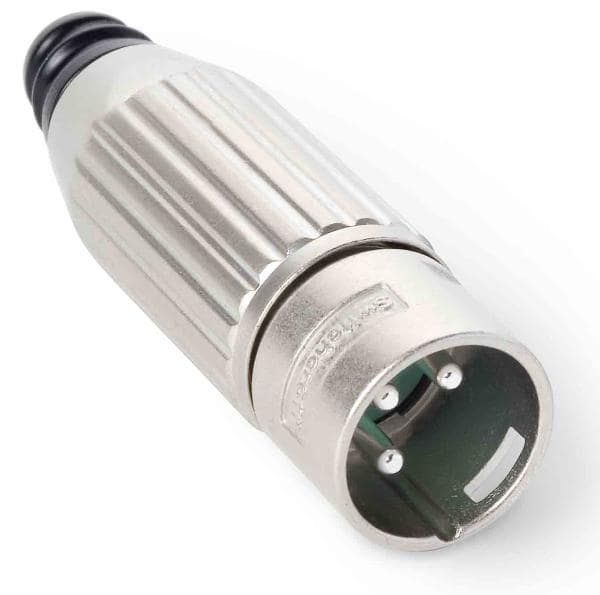

Product Images
