Current Rating1.5A
MountingPanel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
Switchcraft DCP-USBAB-USBB technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
1.5A
Flammability Rating
UL94 V-0
Gender
Female
Insulation Color
White
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Mount
Panel, Bulkhead, Front Side Nut
Number of Ports
1
Number of Positions
1
Package Quantity
10
Plating
Nickel
Ratings
IP67
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Data-Con-X® 150
Termination
Quick Connect
USB Standard
USB 2.0
Compliance
RoHS
Compliant
Datasheet
Switchcraft DCP-USBAB-USBB Datasheet
Download the complete datasheet for Switchcraft DCP-USBAB-USBB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

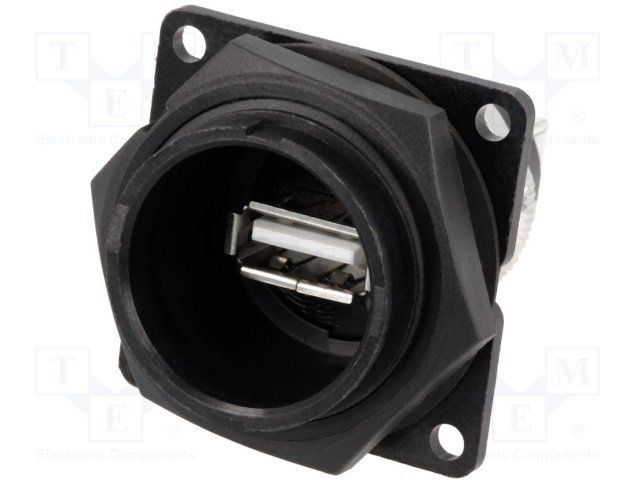

Product Images
