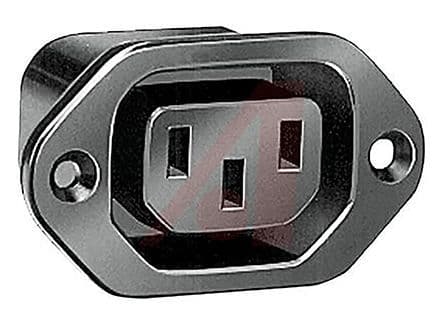

3-pole, 3-position mains power connector with a straight, receptacle gender and solder terminal termination. Features a 15A current rating at 250VAC, copper alloy contacts, and a polycarbonate housing with UL94 V-0 flammability. Panel, flange, cable, and front mounting options are supported. Approvals include SEMKO, UL, and VDE, with RoHS compliance.
Current15A
Voltage Rating250V
Current Rating15A
MountingPanel, Flanges, Cable, Front
Quick Jump:
Technical Specifications
Switchcraft EAC305 technical specifications.
General
Approvals
SEMKO, UL, VDE
Color
Black
Contact Material
Copper Alloy
Contact Type
Socket
Current
15A
Current Rating
15A
Depth
28.96mm
Flammability Rating
UL94 V-0
Fuse
No
Gender
Receptacle
Lead Free
Lead Free
Length
50.03mm
Material
Polycarbonate
Max Current Rating
15A
Max Operating Temperature
65°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Cable, Front
Number of Contacts
3
Number of Poles
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
14.02mm
Primary Type
POWER
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EAC
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Switchcraft EAC305 Datasheet
Download the complete datasheet for Switchcraft EAC305 to view detailed technical specifications.
