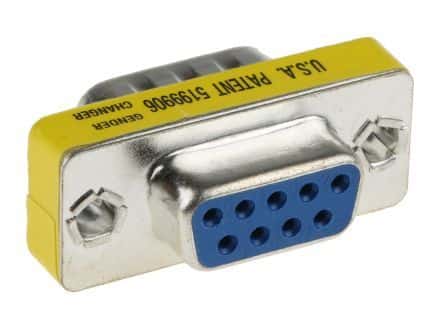

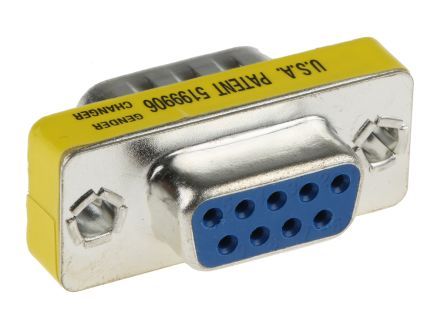

Rectangular connector adapter featuring a D-Sub, Standard interface on both sides, with 9 contacts per port. This panel-mount adapter offers a male-to-female gender configuration and a straight orientation. It boasts gold-plated contacts for reliable signal transmission and a nickel-plated shell. The adapter is RoHS compliant and designed for a panel mount with flanges.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Switchcraft EHDB9MF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Silver |
| Connector Type A | D-Sub, Standard |
| Connector Type B | D-Sub, Standard |
| Contact Plating | Gold |
| Gender Type A | Male |
| Gender Type B | Female |
| Housing Color | Yellow |
| Lead Free | Contains Lead |
| Mount | Panel, Flanges |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Plating | Nickel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EH |
| Shell Size | E |
| Weight | 1.69315oz |
| RoHS | Compliant |
