2-position, male power connector with right-angle orientation for surface mount PCB applications. Features copper alloy and brass contacts with tin and nickel plating, rated for 5A and 250V AC. Thermoplastic body in black, with solder termination and 3 terminals. Unshielded, lead-free component supplied in bulk packaging.
Current Rating5A
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Switchcraft RASM722X technical specifications.
General
Body Color
Black
Body Material
Thermoplastic
Contact Material
Copper Alloy, Brass
Contact Plating
Tin, Nickel
Current Rating
5A
Depth
17.1mm
Gender
Male
Lead Free
Lead Free
Length
15.2mm
Max Current Rating
5A
Mount
Surface Mount, PCB
Number of Contacts
2
Number of Ports
1
Orientation
Right Angle
Package Quantity
2500
Packaging
Bulk
Pin Diameter
2mm
Primary Type
POWER
Reach SVHC Compliant
No
Shielding
Unshielded
Termination
Solder
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Switchcraft RASM722X Datasheet
Download the complete datasheet for Switchcraft RASM722X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

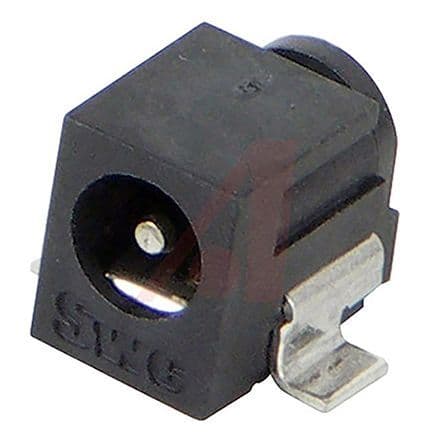

Product Images
