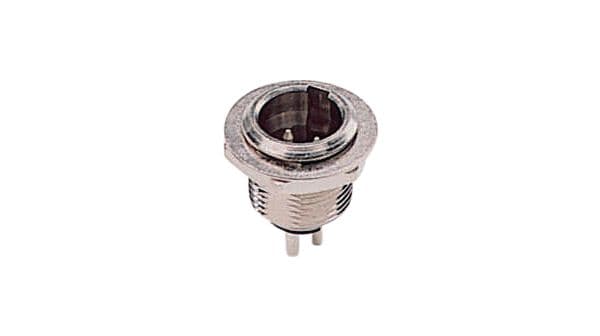

3-position male Mini XLR connector with straight orientation and solder cup termination. Features a metal body constructed from copper alloy with nickel plating, housing 3 male pin contacts made of copper alloy with silver plating. Rated for 5A current and 125V AC, with an operating temperature range of -55°C to 85°C. Panel mountable with a bulkhead rear side nut, this connector is UL approved and RoHS compliant.
PackageMetal
Voltage Rating125V
Current Rating5A
MountingPanel, Bulkhead, Rear Side Nut
Quick Jump:
Technical Specifications
Switchcraft TB3M technical specifications.
General
Approvals
UL
Body Material
Metal, Copper Alloy
Package/Case
Metal
Color
Black, Silver
Contact Finish - Mating
SILVER
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Silver
Contact Type
Pin
Current Rating
5A
Diameter
11.9mm
Flammability Rating
UL94 V-0
Gender
Male
Insulation Material
Thermoplastic
Lead Free
Contains Lead
Length
17.87mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
125V
Mount
Panel, Bulkhead, Rear Side Nut
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Plating
Nickel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TB
Shell Finish
Nickel
Shell Material
Copper Alloy
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
Switchcraft TB3M Datasheet
Download the complete datasheet for Switchcraft TB3M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
