Surface mount fixed inductor with 12nH inductance and 5% tolerance, operating at 100MHz with an 8 Q-factor. Features a 300mA DC current rating, 0.39 Ohm DC resistance, and a 2.7GHz self-resonant frequency. Encased in a compact 0402 (1005 metric) ferrite package, this halogen-free and RoHS compliant component is suitable for surface mounting and operates from -55°C to 125°C.
Package0402
Current Rating390mA
MountingSurface Mount
Inductance12nH
Quick Jump:
Technical Specifications
Taiyo Yuden AQ10512NJ-T technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
390mA
DC Current
300mA
DC Resistance (DCR)
390mR
Depth
0.7mm
Halogen Free
Halogen Free
Height
0.5mm
Inductance
12nH
Length
1mm
Max DC Current
390mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
10
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
2.7GHz
Series
AQ
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
2.3E-05oz
Width
0.024inch
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden AQ10512NJ-T Datasheet
Download the complete datasheet for Taiyo Yuden AQ10512NJ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

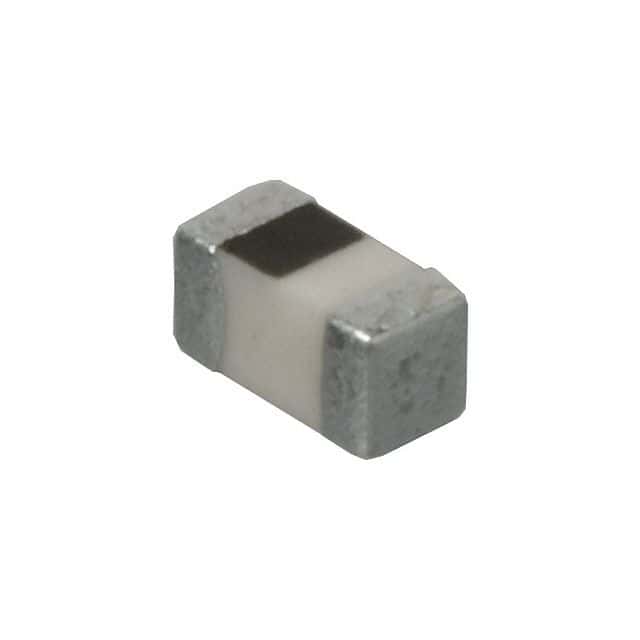

Product Images
