Surface mount chip antenna operating at 1.57542GHz with a bandwidth from 1.574397GHz to 1.576443GHz. Features 15dB gain and 50 Ohm impedance, housed in a 10mm x 10mm x 4mm SMD/SMT package. Designed for solder termination and lead-free applications, this single-band antenna offers a VSWR of 2.
Frequency1.57542GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas AP.10G.01 technical specifications.
General
Package/Case
SMD/SMT
Frequency
1.57542GHz
Gain
15dB
Height
4mm
Impedance
50R
Lead Free
Lead Free
Length
10mm
Max Frequency
1.576443GHz
Min Frequency
1.574397GHz
Mount
Surface Mount
Number of Bands
1
Packaging
Cut Tape
Termination
Solder
VSWR
2
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Taoglas AP.10G.01 Datasheet
Download the complete datasheet for Taoglas AP.10G.01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

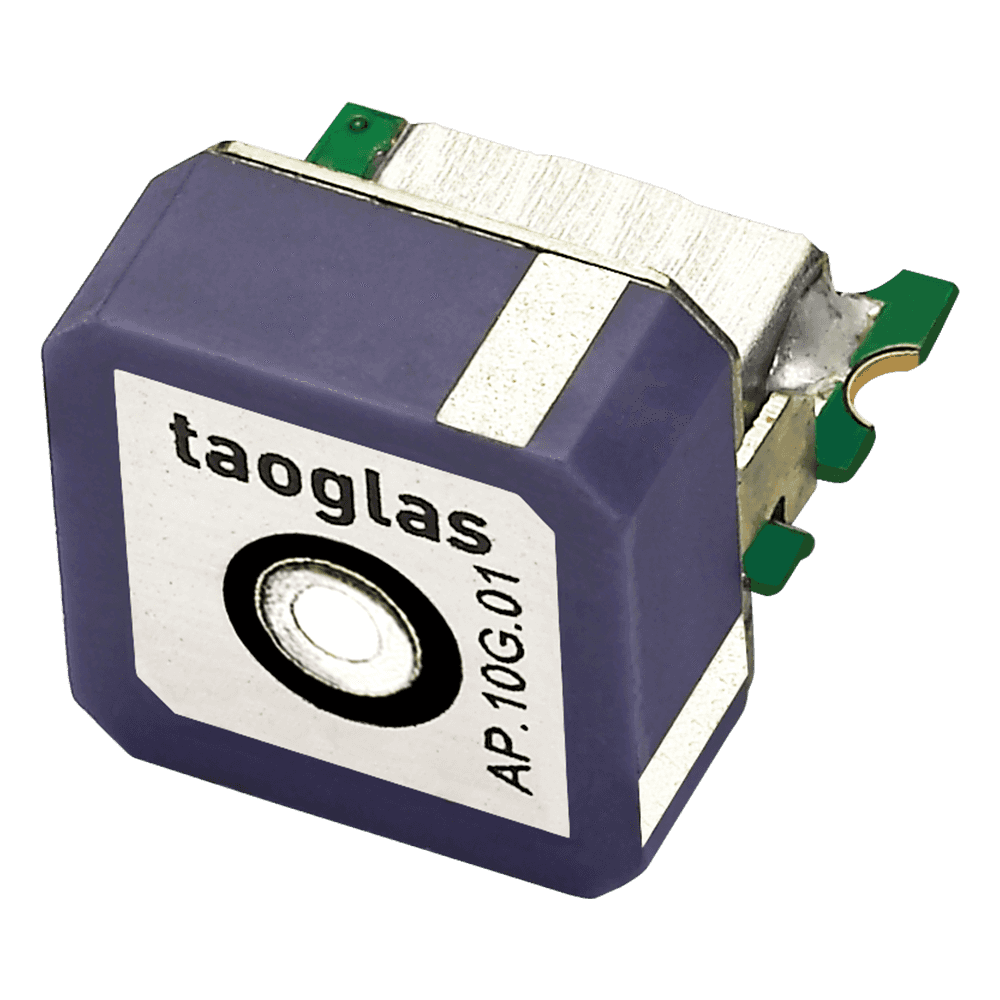

Product Images
