Surface mount ceramic chip antenna for GPS applications, operating at 1.57542GHz with a bandwidth defined by a minimum frequency of 1.574397GHz and a maximum of 1.576443GHz. Features a 50 Ohm impedance and a VSWR of 2. This lead-free component offers a gain of 25dB and measures 10mm in length, 10mm in width, and 4mm in height. Designed for solder termination and available in cut tape packaging.
Frequency1.57542GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas AP.10H.01 technical specifications.
General
Package/Case
SMD/SMT
Frequency
1.57542GHz
Gain
25dB
Height
4mm
Impedance
50R
Lead Free
Lead Free
Length
10mm
Material
Ceramic
Max Frequency
1.576443GHz
Min Frequency
1.574397GHz
Mount
Surface Mount
Number of Bands
1
Packaging
Cut Tape
Termination
Solder
VSWR
2
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Taoglas AP.10H.01 Datasheet
Download the complete datasheet for Taoglas AP.10H.01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

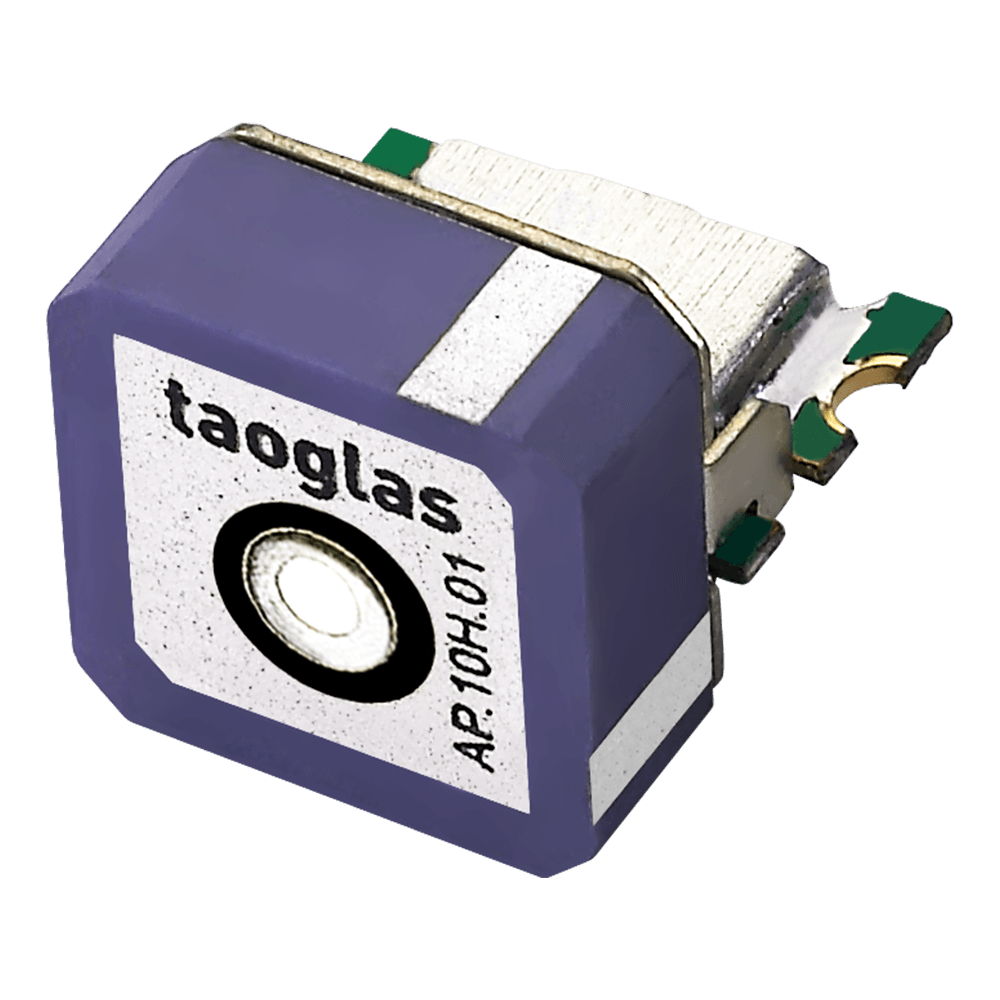

Product Images
