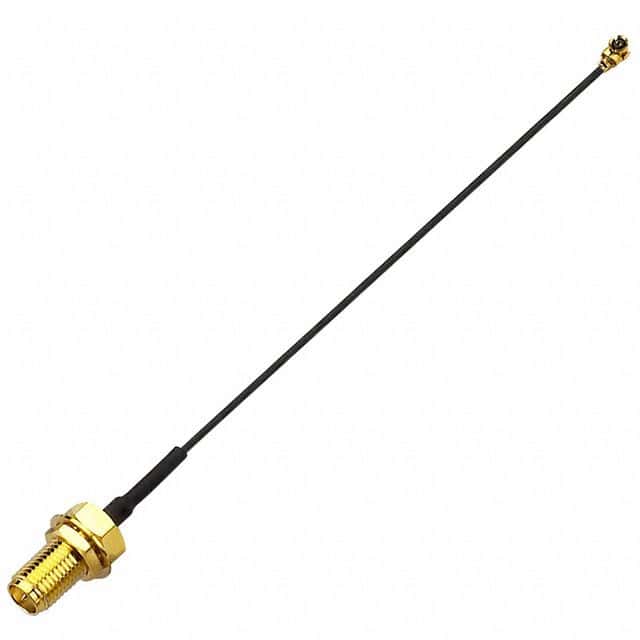

Coaxial cable assembly featuring a 50 Ohm impedance and a maximum frequency of 6GHz. One end terminates with an SMA male pin connector, while the other utilizes a plug connector. The assembly is shielded, has normal polarity, and a length of 95mm. Constructed with brass contacts plated in gold, this lead-free assembly is designed for reliable RF signal transmission.
Frequency6GHz
PackageSMA
PolarityNormal
Quick Jump:
Technical Specifications
Taoglas CAB.628 technical specifications.
General
Package/Case
SMA
Color
Grey
Connector Type A
SMA, Male Pin
Connector Type B
Plug
Contact Material
Brass
Contact Plating
Gold
Features
Shielded
Gender
Female to Male
Gender Type A
Female
Gender Type B
Female
Impedance
50R
Lead Free
Lead Free
Length
95mm
Max Frequency
6GHz
Package Quantity
100
Polarity
Normal
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
Taoglas CAB.628 Datasheet
Download the complete datasheet for Taoglas CAB.628 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
