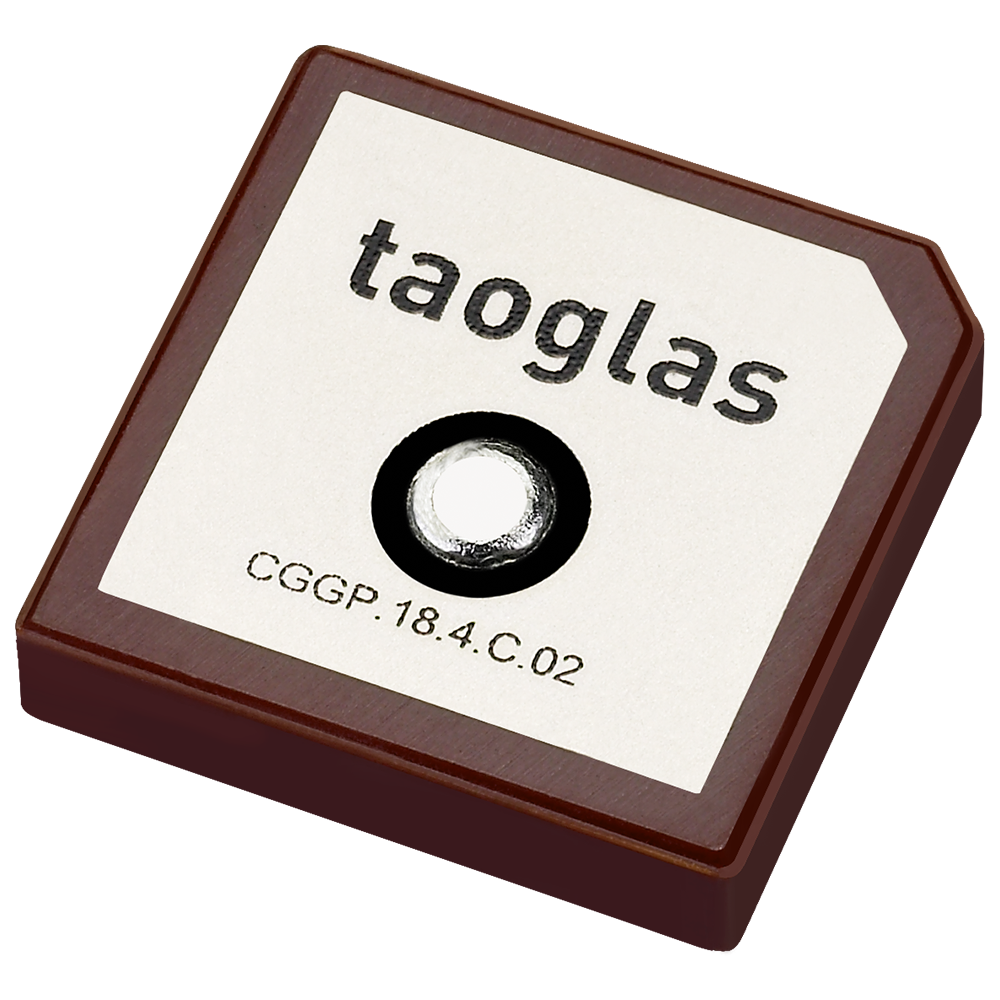

Dual-band ceramic chip antenna operating at 1.575GHz and 1.602GHz, with a center frequency of 1.592GHz. Features a 50 Ohm impedance, 2.4 VSWR, and -7.6dB return loss. This general-purpose antenna measures 18mm in length, 18mm in width, and 4mm in height. Designed for adhesive mounting with pin termination, packaged in trays of 100 units.
Frequency1.592GHz
MountingAdhesive
Quick Jump:
Technical Specifications
Taoglas CGGP.18.4.C.02 technical specifications.
General
Frequency
1.592GHz
Height
4mm
Impedance
50R
Length
18mm
Max Frequency
1.607GHz
Min Frequency
1.574397GHz
Mount
Adhesive
Number of Bands
2
Package Quantity
100
Packaging
Tray
Return Loss
-7.6dB
Termination
Pin
VSWR
2.4
Width
18mm
Compliance
RoHS
Compliant
Datasheet
Taoglas CGGP.18.4.C.02 Datasheet
Download the complete datasheet for Taoglas CGGP.18.4.C.02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

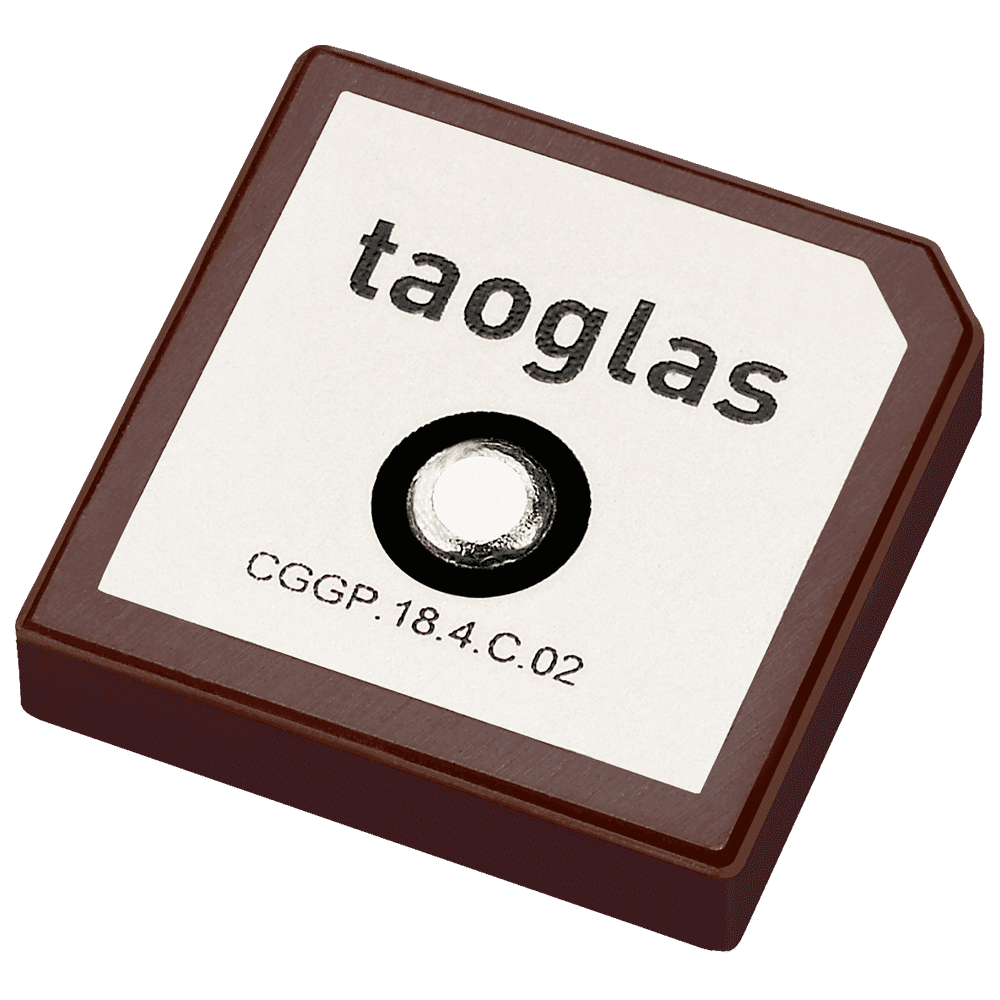

Product Images
