Dual-band ceramic chip antenna for RF and wireless applications, operating at 1.575GHz and 1.621GHz with a 43MHz bandwidth. Features a 50 Ohm impedance, 2 VSWR, and surface mount termination. This lead-free component measures 25mm in length, 25mm in width, and 4mm in height. Supplied in trays of 100 units.
Frequency1.6265GHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas CGIP.25.4.A.02 technical specifications.
General
Bandwidth
43MHz
Height
4mm
Impedance
50R
Lead Free
Lead Free
Length
25mm
Max Frequency
1.6265GHz
Min Frequency
1.57542GHz
Mount
Surface Mount
Number of Bands
2
Package Quantity
100
Packaging
Tray
Termination
Pin
VSWR
2
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Taoglas CGIP.25.4.A.02 Datasheet
Download the complete datasheet for Taoglas CGIP.25.4.A.02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

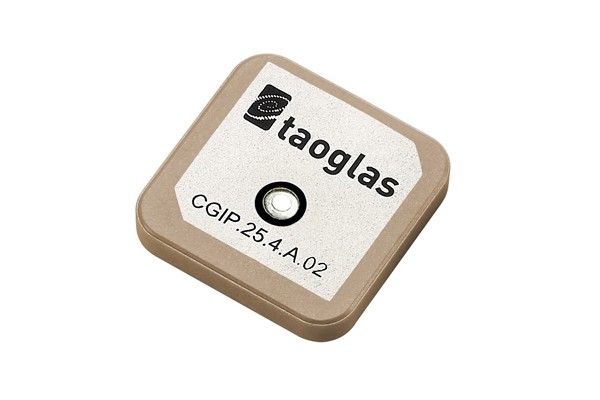

Product Images
