Dual-band chip antenna operating from 2.4GHz to 5.8GHz, featuring a 50 Ohm impedance and 2W maximum power dissipation. This flat patch antenna, constructed from plastic, measures 42mm in length and 7mm in width, utilizing adhesive mounting for secure placement. Designed for general RF and wireless applications, it offers lead-free construction and is supplied in bulk packaging.
Frequency5.8GHz
MountingAdhesive
Quick Jump:
Technical Specifications
Taoglas FXP830.07.0100C technical specifications.
General
Frequency
5.8GHz
Impedance
50R
Lead Free
Lead Free
Length
42mm
Material
Plastic
Max Frequency
5.8GHz
Min Frequency
2.4GHz
Max Power Dissipation
2W
Mount
Adhesive
Number of Bands
2
Packaging
Bulk
Series
Freedom
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Taoglas FXP830.07.0100C Datasheet
Download the complete datasheet for Taoglas FXP830.07.0100C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

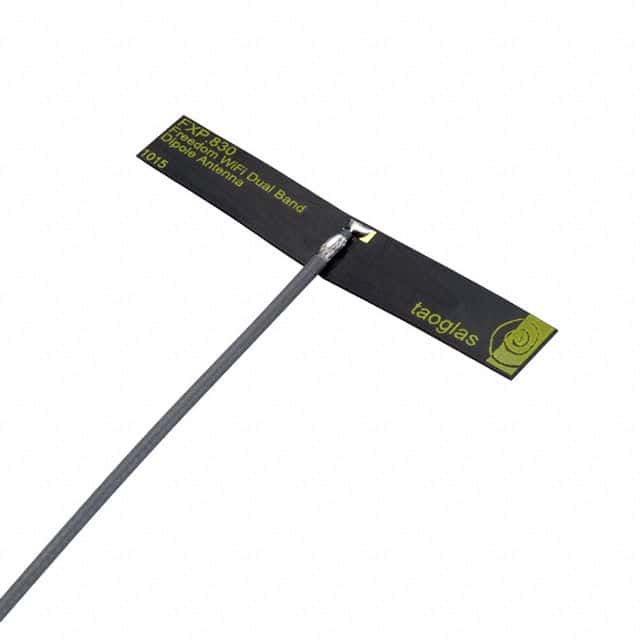

Product Images
