Dual-band 2.4/5.8GHz chip antenna, featuring a 3dBi gain and dipole radiation pattern. This hinged antenna terminates with an RP-SMA male connector, offering a 50 Ohm impedance. Operating across a frequency range of 2.4GHz to 5.85GHz, it handles up to 1W of power dissipation with a return loss of -10dB. The SMA connector mount facilitates easy integration, and the component is rated IP65 for environmental protection.
Frequency5.8GHz
PackageSMA
MountingConnector
Quick Jump:
Technical Specifications
Taoglas GW.59.3153 technical specifications.
General
Package/Case
SMA
Diameter
13mm
Frequency
5.8GHz
Height
6.142inch
Impedance
50R
Length
156mm
Max Frequency
5.85GHz
Min Frequency
2.4GHz
Max Power Dissipation
1W
Mount
Connector
Number of Bands
2
Package Quantity
100
Packaging
Bulk
Ratings
IP65
Return Loss
-10dB
Termination
SMA
Compliance
RoHS
Compliant
Datasheet
Taoglas GW.59.3153 Datasheet
Download the complete datasheet for Taoglas GW.59.3153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

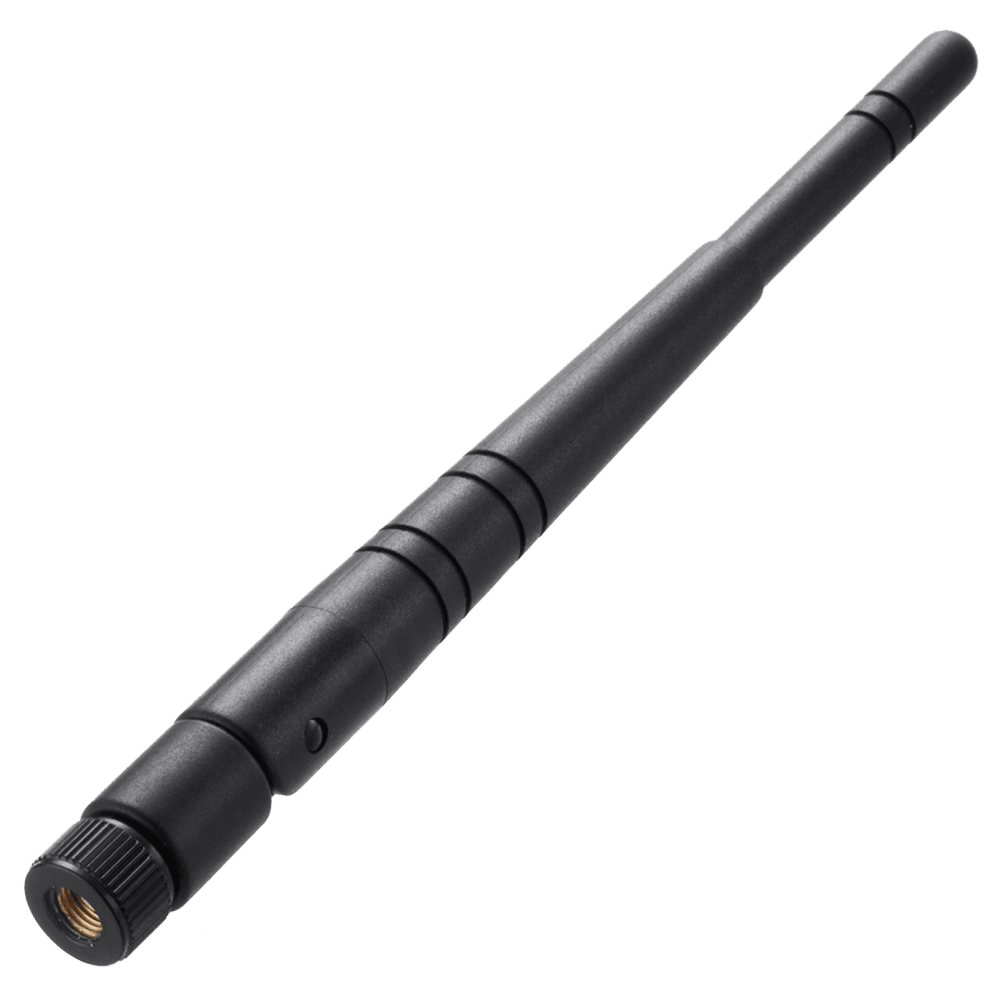

Product Images
