Surface mount ceramic antenna for 2G, 3G, and 4G applications. Features a wide operating frequency range from 698MHz to 2.69GHz, supporting multiple cellular bands. Designed for reliable performance with a 50 Ohm impedance and a VSWR of 3. This compact component measures 0.19 inches in height and is supplied on tape and reel for efficient SMT assembly.
Frequency698MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas PA.710.A technical specifications.
General
Package/Case
SMD/SMT
Frequency
698MHz
Height
0.19inch
Impedance
50R
Max Frequency
2.69GHz
Min Frequency
698MHz
Mount
Surface Mount
Number of Bands
3
Package Quantity
1
Packaging
Tape and Reel
Termination
SMD/SMT
VSWR
3
Compliance
RoHS
Compliant
Datasheet
Taoglas PA.710.A Datasheet
Download the complete datasheet for Taoglas PA.710.A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

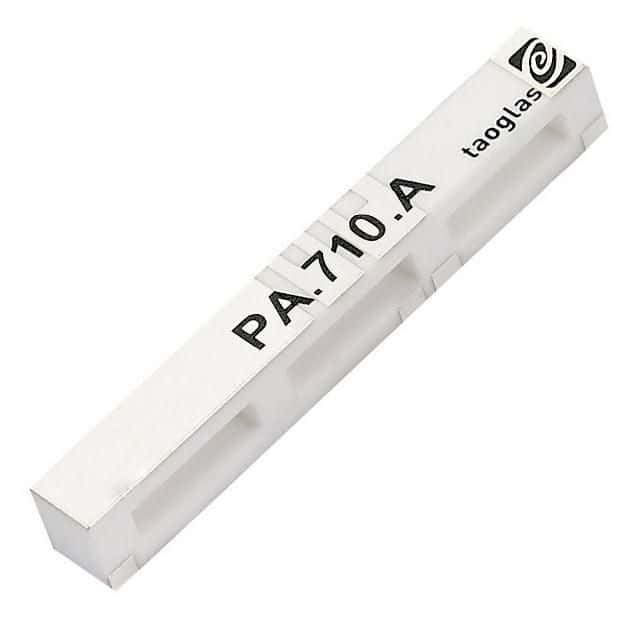

Product Images
