Dual-band SMT mount chip antenna for GPS and GLONASS reception. Features a 25x25x4mm footprint with a 1.5 VSWR across its 1.574397GHz to 1.607GHz operating frequency range. This 50-ohm impedance component utilizes solder termination for secure surface mounting.
Frequency1.607GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas SGGP.25.4.A.02 technical specifications.
General
Package/Case
SMD/SMT
Height
0.177inch
Impedance
50R
Max Frequency
1.607GHz
Min Frequency
1.574397GHz
Mount
Surface Mount
Number of Bands
2
Package Quantity
200
Termination
Solder
VSWR
1.5
Compliance
RoHS
Compliant
Datasheet
Taoglas SGGP.25.4.A.02 Datasheet
Download the complete datasheet for Taoglas SGGP.25.4.A.02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

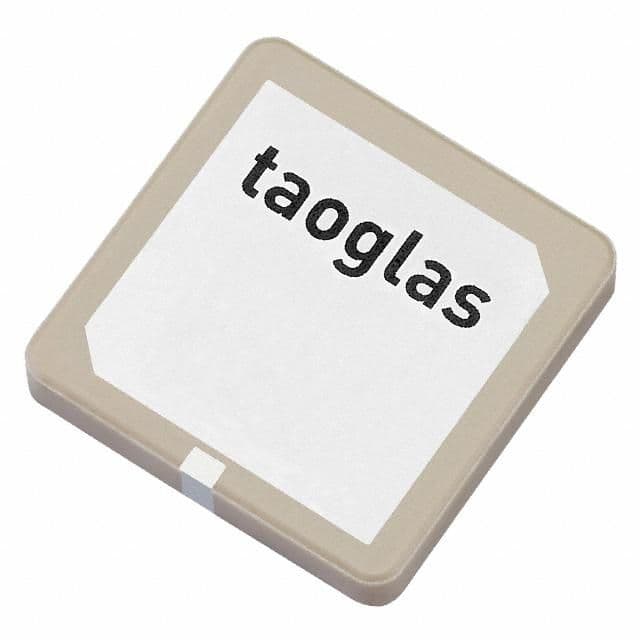

Product Images
