General purpose RF chip antenna operating from 800MHz to 2.2GHz. Features a 50 Ohm impedance and a VSWR of 2.3. This antenna is designed for connector mounting with an SMA termination. It offers a maximum power dissipation of 20W and is lead-free.
Frequency2.2GHz
PackageSMA
MountingConnector
Quick Jump:
Technical Specifications
Taoglas TG.22.0112 technical specifications.
General
Package/Case
SMA
Diameter
7.8mm
Frequency
2.2GHz
Height
1.764inch
Impedance
50R
Lead Free
Lead Free
Length
44.8mm
Max Frequency
2.2GHz
Min Frequency
800MHz
Max Power Dissipation
20W
Mount
Connector
Number of Bands
1
Package Quantity
100
Packaging
Bulk
Termination
SMA
VSWR
2.3
Compliance
RoHS
Compliant
Datasheet
Taoglas TG.22.0112 Datasheet
Download the complete datasheet for Taoglas TG.22.0112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

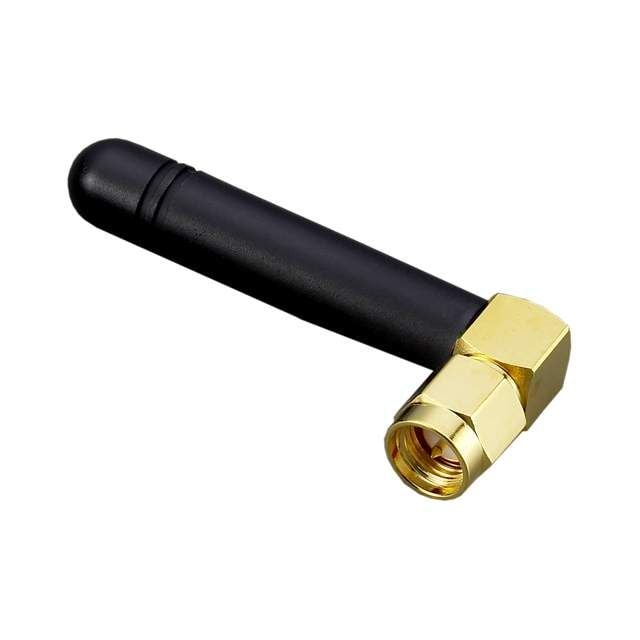

Product Images
