Surface mount chip antenna operating at 2.4GHz, with a VSWR of 2 and 50 Ohm impedance. This single-band ceramic antenna features a compact 3.2mm x 1.6mm x 0.02inch (L x W x H) SMD/SMT package for solder termination. Designed for general RF and wireless applications, it covers a frequency range from 2.4GHz to 2.5GHz and is lead-free and RoHS compliant.
Frequency2.4GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taoglas WLA.01 technical specifications.
General
Package/Case
SMD/SMT
Frequency
2.4GHz
Height
0.02inch
Impedance
50R
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Frequency
2.5GHz
Min Frequency
2.4GHz
Mount
Surface Mount
Number of Bands
1
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Termination
Solder
VSWR
2
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Taoglas WLA.01 Datasheet
Download the complete datasheet for Taoglas WLA.01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

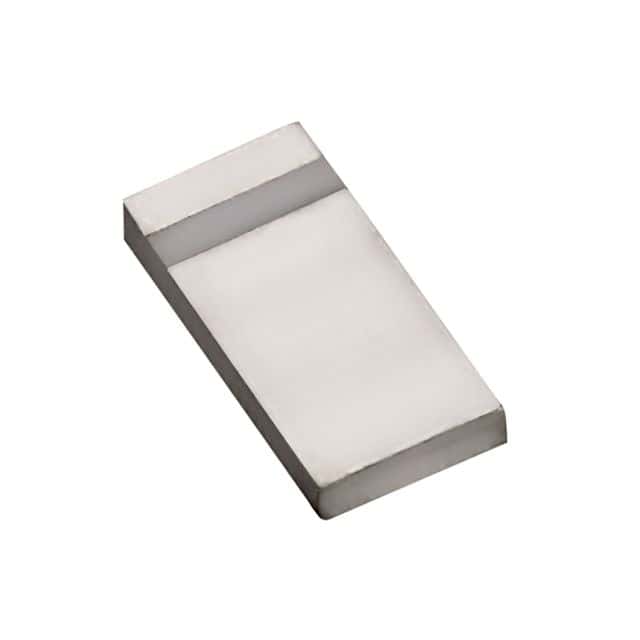

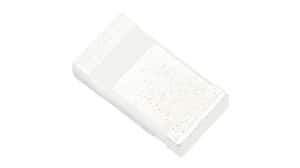

Product Images
