14-position, 2-row right-angle socket strip with 1.27mm pitch. Features tin-plated bronze forked contacts with a 1.5A current rating and TIN mating finish. Constructed with PBT insulation in red, this component offers a 100V DC rating and operates between -40°C and 105°C. Mounting is through-hole with PCB alignment and retention, suitable for 1.6mm PCBs. Packaged on tape and reel, this RoHS and ELV compliant connector is UL94 V-0 flammability rated.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-100400-4 technical specifications.
General
Board Standoff
No (Without)
Connector System
Wire-to-Board
Contact Current Rating
1.5A
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Forked
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.23inch
Housing Color
Red
Insulation Color
Red
Insulation Material
PBT
Lead Free
Lead Free
Length
19.8mm
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Right Angle
Package Quantity
2500
Packaging
Tape and Reel
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.6mm
Pitch
0.05inch
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
1.5mm
Series
Micro-MaTch
Termination
Through Hole
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-100400-4 Datasheet
Download the complete datasheet for TE Connectivity 1-100400-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

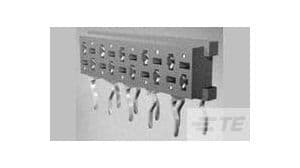

Product Images
