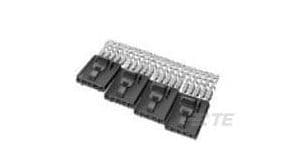

1-103640-5

16 Pos 2.54mm IDC Female Header, 3A, Black, UL94 V-0

16-position, 1-row wire-to-board connector featuring IDC termination and a 2.54mm pitch. This female socket connector offers a 3A current rating and a maximum operating temperature of 105°C. It includes mating alignment and mating connector lock features, with a black housing and bronze contacts plated with tin, lead, and bright finishes. Designed for discrete and ribbon wire types, it accommodates wire gauges from 30AWG to 26AWG.

Current Rating3A

MountingFree Hanging

Quick Jump:

Technical Specifications

TE Connectivity 1-103640-5 technical specifications.

General

Approvals	CSA
Color	Black
Contact Current Rating	3A
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Tin, Lead, Bright
Contact Type	Female Socket
Current Rating	3A
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Housing Color	Black
Insulation Diameter	1.37mm
Lead Free	Not Applicable
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Free Hanging
Number of Contacts	16
Number of Positions	16
Number of Rows	1
Package Quantity	13
Packaging	Rail/Tube
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	0.1inch
Series	AMPMODU MTE
Termination	IDC
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	30AWG
Wire/Cable Gauge	26AWG
Wire/Cable Type	Discrete, Ribbon
