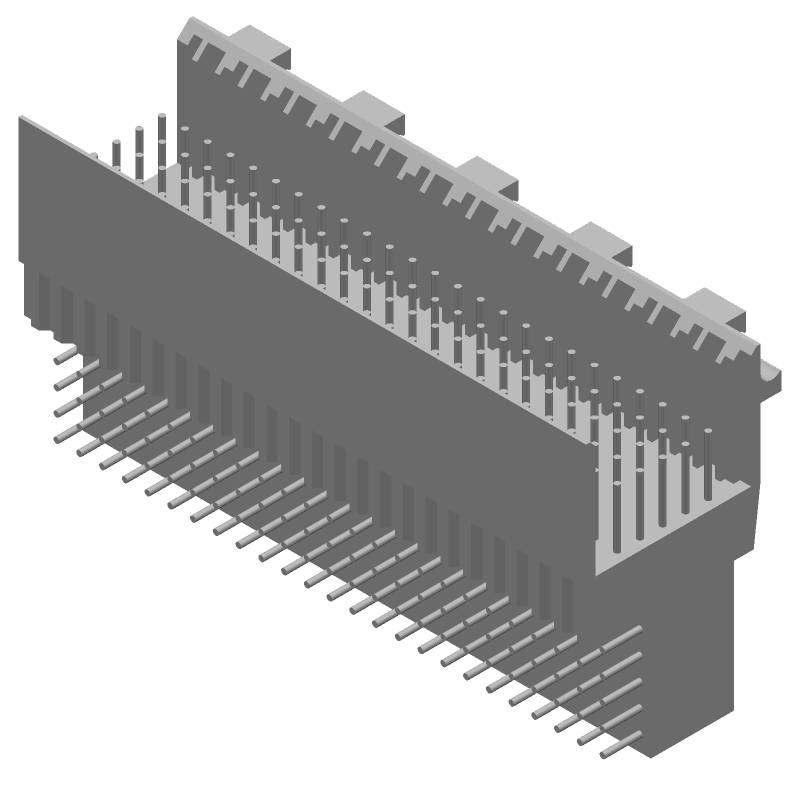

125-position, 2mm pitch, male right-angle backplane connector with 5 rows and 25 columns. Features bronze contacts with 0.76um gold plating, a grey UL94 V-0 rated housing, and press-fit termination. Designed for through-hole, edge, and board mounting with a 50mm length and a maximum operating temperature of 125°C. RoHS compliant.
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 1-106014-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Lead Free | Not Applicable |
| Length | 50mm |
| Make First / Break Last | No |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Edge, Board |
| Number of Columns | 25 |
| Number of Contacts | 125 |
| Number of Positions | 125 |
| Number of Rows | 5 |
| Orientation | Right Angle |
| Package Quantity | 11 |
| Packaging | Box |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2mm |
| Plating Thickness | 0.76um |
| RoHS Compliant | Yes |
| Series | Z-Pack |
| Shielding | Unshielded |
| Termination | Press-Fit |
