RF coaxial connector, female, straight orientation, with 75 Ohm impedance and a 0Hz to 2GHz operating frequency range. Features a zinc body with nickel plating and brass contacts with gold plating. Designed for panel mounting with a solder termination and vertical PCB mounting orientation. Rated for 500V DC and operating temperatures from -55°C to 85°C, with a mating cycle of 500.
Frequency2GHz
Voltage Rating500V
MountingPanel
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 1-1634629-0 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Depth
15.8mm
Dielectric Material
Polyethylene
Frequency
2GHz
Gender
Female
Housing Color
Black
Impedance
75R
Insulation Material
Polyethylene
Length
14.76mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Contacts
1
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 2 GHz
Orientation
Straight
Outside Diameter
14.529mm
Package Quantity
100
Packaging
Box
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.126inch
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
ZDC, Greenpar
Tail Length
0.169inch
Termination
Solder
Voltage Rating
500V
DC Rated Voltage
500V
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1634629-0 Datasheet
Download the complete datasheet for TE Connectivity 1-1634629-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

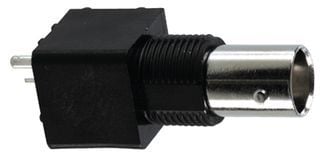

Product Images
