TE CONNECTIVITY

1-171825-0

Datasheet

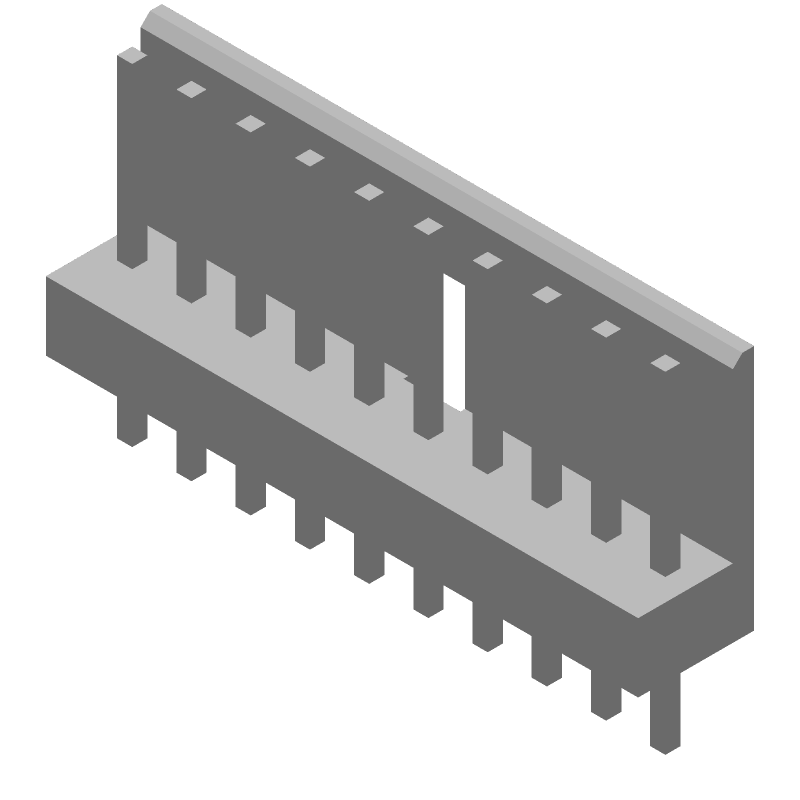

10 Pos 2.5mm Pitch Wire to Board Header, Straight, Solder, 3.5A, 250V

TE Connectivity

1-171825-0

Name: 1-171825-0 TE Connectivity
Brand: TE Connectivity
SKU: 1-171825-0

10 Pos 2.5mm Pitch Wire to Board Header, Straight, Solder, 3.5A, 250V

10-position, straight, male pin header for wire-to-board applications. Features a 2.5mm pitch and solder termination with a 0.8um tin contact finish over copper. Rated for 3.5A current and 250V AC / 350V DC, operating between -20°C and 95°C. Constructed with brass contacts and a natural nylon housing, this component is UL recognized and RoHS compliant. Designed for through-hole mounting with a vertical PCB orientation.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-171825-0 technical specifications.

General

Approvals	UL
Backwall/Post Interruptions	No (Without)
Contact Current Rating	3.5A
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	7.5mm
Contact Plating	Copper, Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Depth	4.9mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	0.409inch
Housing Color	Natural
Insulation Color	Natural
Insulation Material	Nylon
Lead Free	Lead Free
Length	25mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	95°C
Min Operating Temperature	-20°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	350.25kV
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Straight
Package Quantity	250
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	2.5mm
Plating Thickness	0.8um
Radiation Hardening	No
RoHS Compliant	Yes
Series	EI
Strain Relief	No (Without)
Tail Length	0.142inch
Termination	Solder
Voltage Rating (AC)	250V
DC Rated Voltage	350V
