This right-angle, wire-to-board power connector features a 6-position configuration with a 3.81mm pitch. It utilizes a male, tab-style contact made from copper alloy with gold plating, rated for 8A and 250V AC/DC. The connector system is designed for solder termination with a tail length of 3.8mm and includes mating alignment and retention features. Constructed with a black glass-filled nylon housing, it meets UL94 V-0 flammability standards and is RoHS and Halogen Free compliant.
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-178137-2 technical specifications.
General
| Approvals | UL |
| Connector System | Wire-to-Board |
| Contact Current Rating | 8A |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Retention | No (Without) |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Depth | 25.91mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Halogen Free | Halogen Free |
| Height | 0.668inch |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Length | 0.851inch |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 23 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.063inch |
| Pitch | 0.149inch |
| Preloaded | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.3inch |
| Sealable | No (Without) |
| Selectively Loaded | No (Without) |
| Series | Dynamic D-3100 |
| Shielding | Unshielded |
| Shrouded | Yes (With) |
| Strain Relief | No (Without) |
| Tail Length | 3.8mm |
| Termination | Solder |
| Voltage Rating | 250V |
| Width | 25.91mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-178137-2 Datasheet
Download the complete datasheet for TE Connectivity 1-178137-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

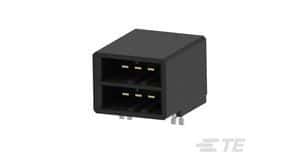

Product Images
